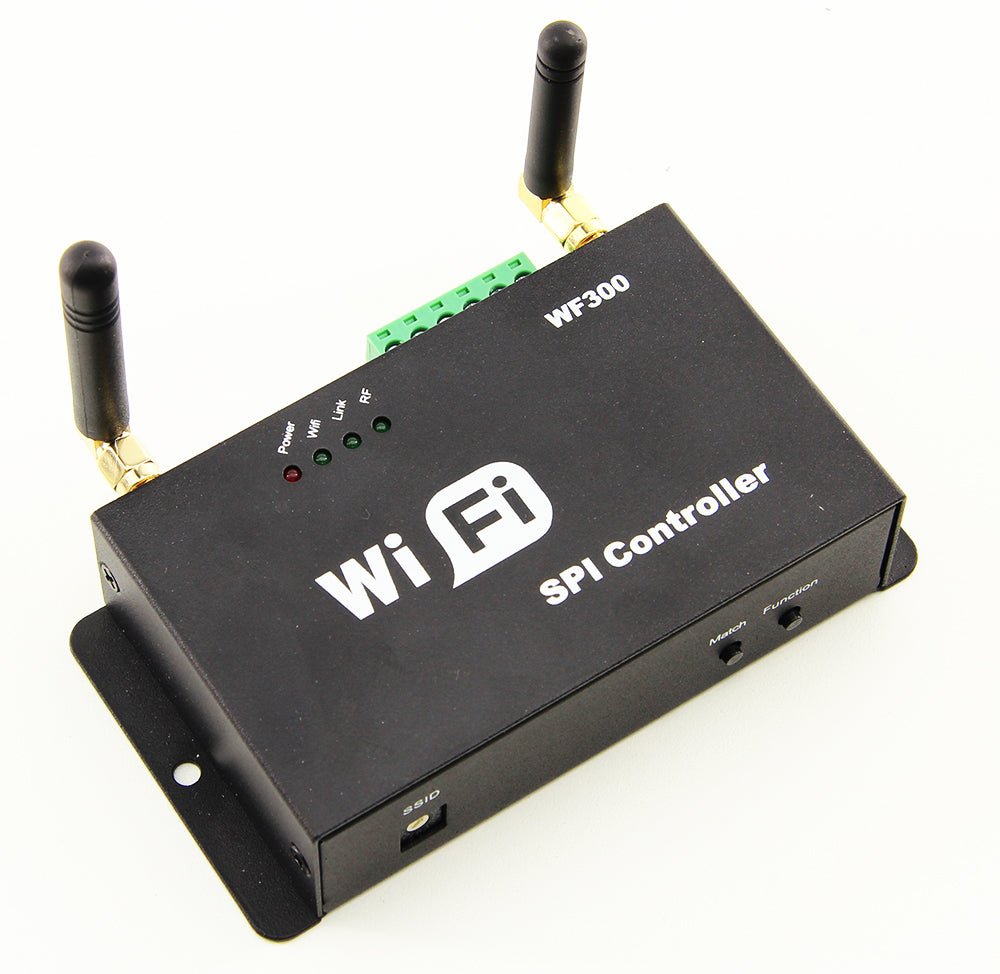

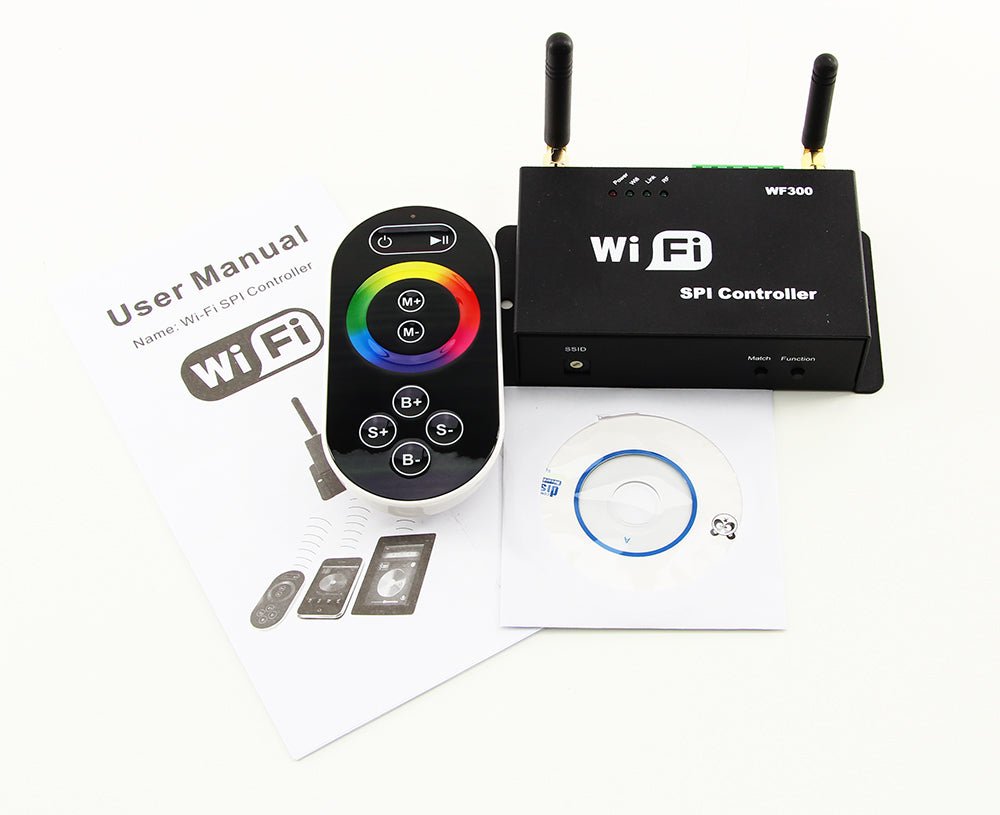

WIFI-300 LED WiFi SPI Controller IC Dream Color Pixels LED Strip
PPCS-WIFI-RGB300
Thank you for your submission!
We will get back to you soon.
Estimate shipping
2 in stock
$59.95
/
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details

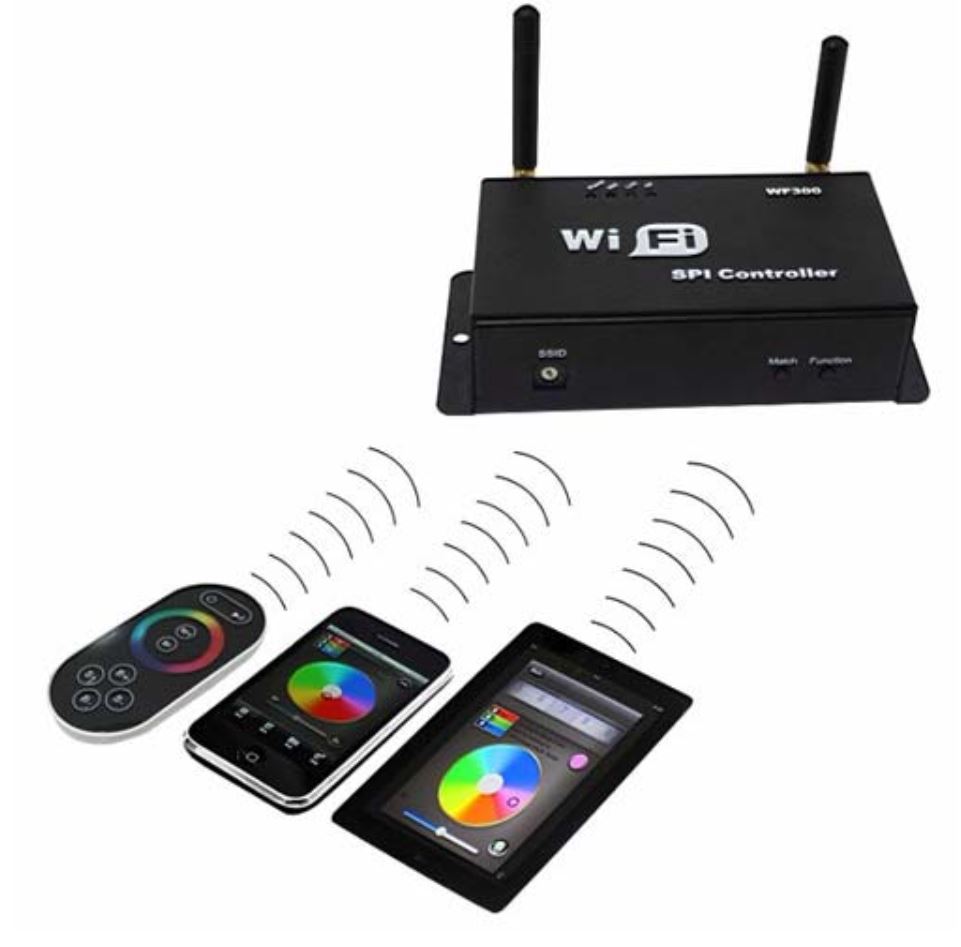

LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more convenient. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
WIFI-300 LED WiFi SPI Controller;support LPD6803,TM1809,WS2801,WS2811,WS2812B,TLS3001,UCS1903, IC Dream Color Pixels LED Strips only! This is NOT for standard RGB or RGBW LED strips Only for addressable LED strips using the IC's listed above.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint,
Features

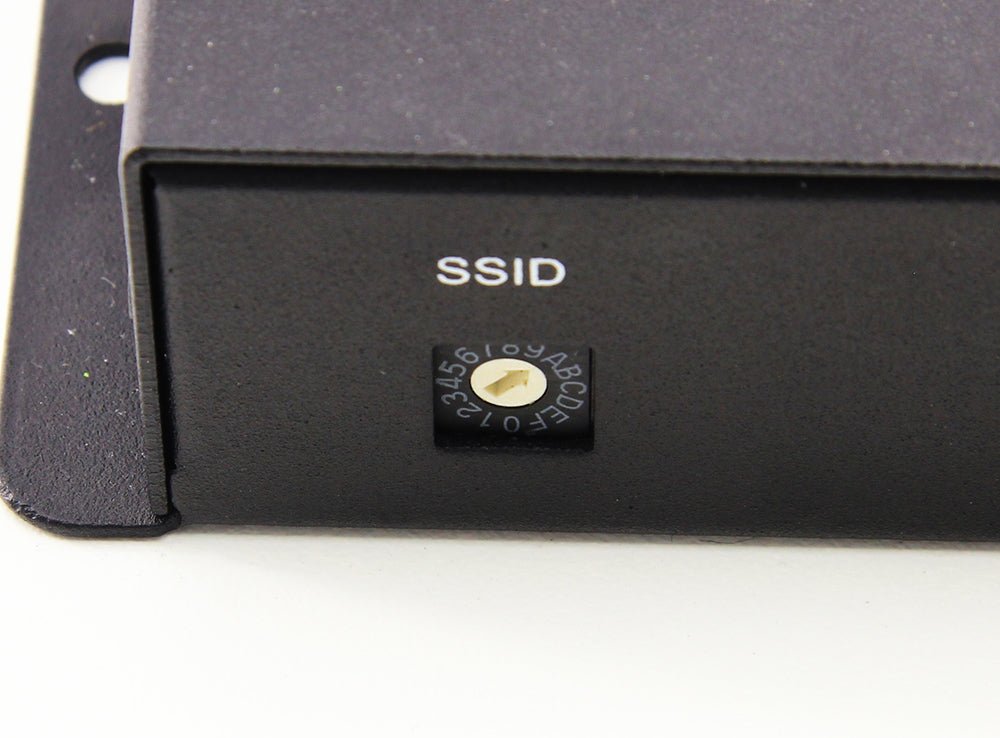

After power on the controller, open the cellphone set of WIFI, search WIFI network, you will check WIFI equipment is named LN+number, for exampleLN001, LN003 and so on, as picture: The number after LN is controller SSID code, same controller can set different code, when in the same network environment have many controllers, it can distinguish. About the SSID setting, will be in details below. Indicator light Function table Power Power indicator light, long-time bright shows power supply normally Wifi Free time long-time bright, have wifi data enter flicker, configuration wifi Ssid off Link Have wifi date enter, then flicker, no wifi data, then off. RF Have RF remote data or press key operate, then flicker, free time off. The dial code is used for setting LED-WiFi controller Ssid number, corresponding table as below. Form 0 to 15, have 16 code in total, so our Ssid number fasten to LN001 to LN016. That means use our product in same small area can set 16 mutual isolation LAN, once the dial code changed after switch was dialed, Ssid number immediately be modified, so you need to note that it need to search and connect again. code SSID 0 LN001 1 LN002 2 LN003 3 LN004 4 LN005 5 LN006 6 LN007 7 LN008 8 LN009 9 LN010 A LN011 B LN012 C LN013 D LN014 E LN015 F LN016 LED Strip according model connect corresponding port. The first time use the controller and remote control, maybe because the controller address and remote control address is not match, it will cause the remote control can not control, at this time, it need to use this button to make this 2 address matched. Use method: first, press the controller Match key, at the same time press any key of the remote control, more than 2s, now the remote control indicator light RF will flicker 3 times, release Match key, then finished. ?Function? key is a composite button, it have switch and mode change function. Function instruction: long-time(more than 2s): on off; Short press(less than 1s): mode change. 1. Controller panel have 64 touch point, and the function as follow: 1. ON/OFF,you can turn on/off controller output at any time; 2. Pause,at dynamic mode, you can stop the controller at the current state; 3. This button have 2 functions : Mode + choice key, when current control pattern is pulley pattern (color), if must realize the pattern (color)in the controller, can press this key. mode switch button, for the current control mode, you can switch M + key which is specified mode (color) in the table. 4. This button have 2 functions : Mode - choice key,when current control pattern is pulley pattern (color), if must realize the pattern (color)in the controller, can press this key. mode switch button,For the current control mode, you can switch M + key which is specified mode (color) in the table. 5. The output brightness control key,every time you press this button, the brightness series add 1,altogether 32 levels. 6. The output brightness control key,every time you press this button, the brightness series minus 1, altogether 32 levels. 7. The output speed control key,every time you press this button, the brightness series add 1, altogether 99 levels. 8. The output speed control key,every time you press this button, the brightness series minus 1, altogether 99 levels. 9. Color pulley touch button, static mode choose button, up to 55 touch points. this button have 2 functions: static color choose button, when current control mode is the mode of M key(color), if you want to realize static color ,can press this button. pulley color choose button, can choose from 55 kinds of static mode (the color from pulley). 2. Power supply management: stop to use the remote more than 20s, the remote will enter the standby state (untouchable state), to extend the battery life; slightly shake once, then the remote will come back to the normal working state (touchable state). Notice:This remote control only can change the pattern, the brightness, the speed, if you want to change the controller IC model, the IC support point, the RGB sequency, then must connect WIFI through cell phone to change. 7. Controller built-in mode table Modes Mode instruction 1 Static red 2 Static green 3 Static blue 4 Static yellow 5 Static purple 6 Static cyan 7 Static white 8 Red horse race to right 9 Red horse race to left 10 Green horse race to right 11 Green horse race to left 12 Blue horse race to right 13 Blue horse race to left 14 Red horse race lower curtain 15 Green horse race draw curtain 16 Three base color horse race brush forward direction 17 Three mixing color horse race brush 18 Three base color horse race brush draw curtain 19 Three mixing color horse race brush lower curtain 20 Seven-color horse race brush forward direction 21 Seven-color horse race brush backward direction 22 Seven-color horse race brush draw curtain 23 Seven-color horse race brush lower curtain 24 Three base color brush forward direction 25 Three base color brush backward direction 26 Three mixing color brush forward direction 27 Three mixing color brush backward direction 28 Seven-color brush forward direction 29 Seven-color brush backward direction 30 Three base color brush draw curtain 31 Three base color brush lower curtain 32 Seven-color brush draw curtain 33 Seven-color brush lower curtain 34 Three base color stroboflash 35 Seven-color stroboflash 36 Three base color jumpy change 37 Three mixing color jumpy change 38 Seven-color jumpy change 39 Green-blue-yellow three color wave by wave running forward direction 40 Blue-yellow-cyan three color wave by wave running backward direction 41 Three mixing color three color wave by wave running forward direction 42 Three mixing color three color wave by wave running backward direction 43 Blue-yellow-cyan three color wave by wave running forward direction 44 Green-blue draw curtain 45 Blue-yellow lower curtain 46 Seven-color wave forward direction 47 Seven-color wave backward direction 48 Blue trail backward direction 49 Red trail forward direction 50 Red trail backward direction 51 Green trail forward direction 52 Green trail backward direction 53 Blue trail forward direction 54 Yellow trail forward direction 55 Cyan trail forward direction 56 Purple trail backward direction 57 White trail forward direction 58 White trail backward direction 59 Seven-color running trail backward direction 60 Seven-color running trail forward direction 61 Change color cyan-red-cyan forward direction 62 Change color purple-red-purple forward direction 63 Change color purple-red-purple backward direction 64 Change color yellow-green-yellow forward direction 65 Change color yellow-green-yellow backward direction 66 Change color cyan-green-cyan forward direction 67 Change color cyan-green-cyan backward direction 68 Change color purple-blue-purple forward direction 69 Change color purple-blue-purple backward direction 70 Change color cyan-blue-cyan forward direction 71 Change color cyan-blue-cyan backward direction 72 Change color white-red-white forward direction 73 Change color white-red-white backward direction 74 Change color green-red-green forward direction 75 Change color blue-red-blue backward direction 76 Change color yellow-red-yellow forward direction 77 Change color yellow-red-yellow backward direction 78 Change color red-yellow-red 79 Change color red-purple-red 80 Change color green-cyan-green 81 Change color green-yellow-green 82 Change color blue-purple-blue 83 Automatically play 8-82 This connector structure belong to drawer structure, the device interface of power supply and LED is together, four interface one the left side (GND,CLK,DATA, LAT)is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support 10 kinds of SPI strip in market, As follows: Number Model Signal line 1 LPD6803 DATACLK 2 TM1803 DATA 3 UCS1903 DATA 4 WS2811 DATA 5 TM1812 DATA 6 TM1809 DATA 7 WS2801 DATACLK 8 TLS3001 DATA 9 TLS3008 DATA 10 P9813 DATACLK Wiring as WS2801 LPD6803 etc.III Magic Color Instruction
1. WIFI Connect
LED-WiFi Controller Function Instruction
1. Working state instruction
2. Setting SSID number

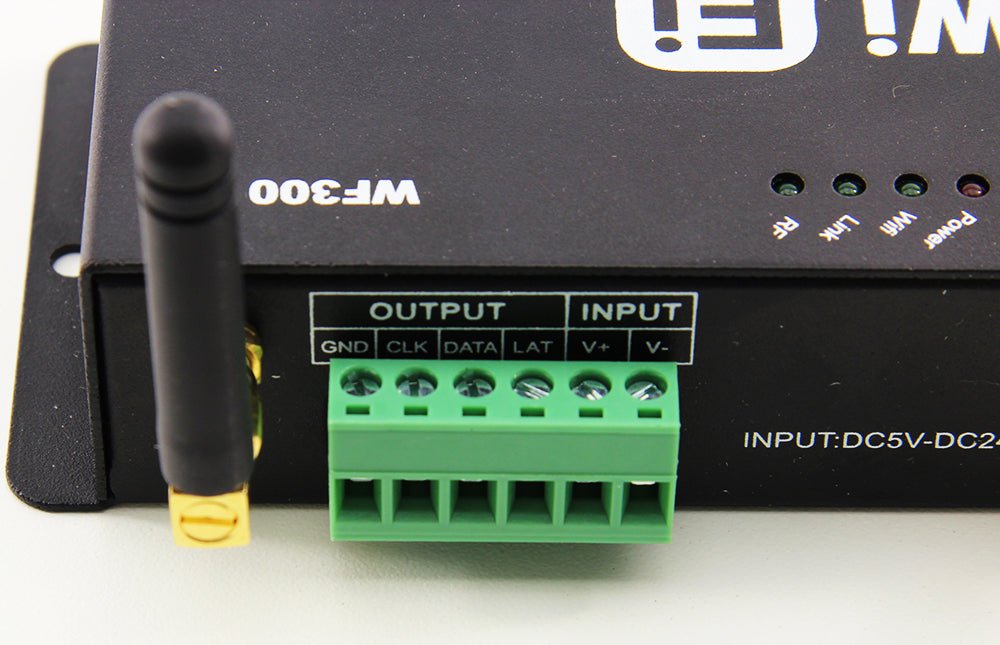

3. Connect LED, Power supply port

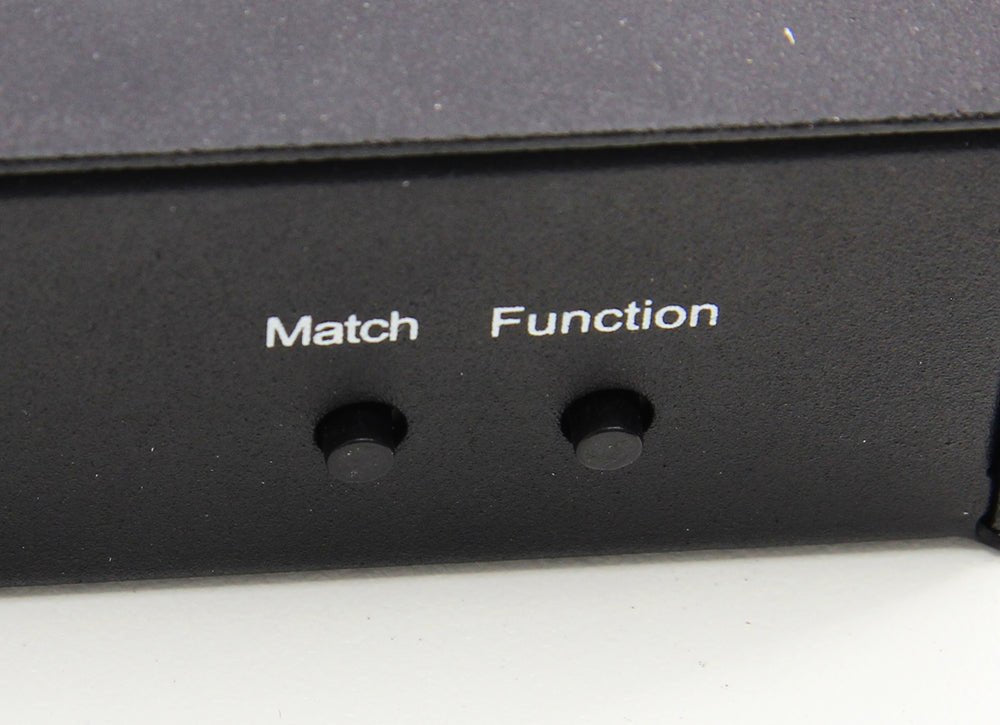

4. Match Key function
5. Function key function
nstall power supply and LED equipment
Wiring as WS2811 UCS1903
Specifications
