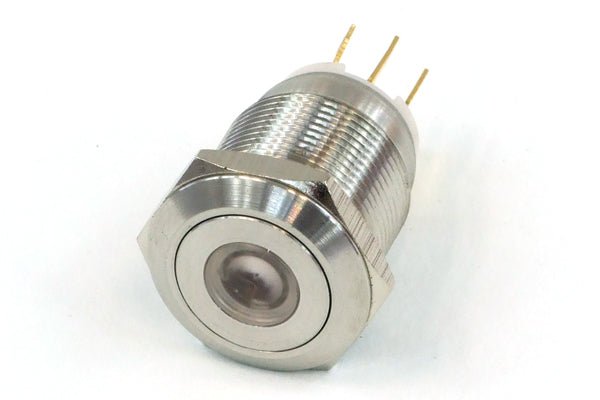

Vandal Resistant Illuminated Momentary Switch - Silver - 22/19mm - Blue Dot

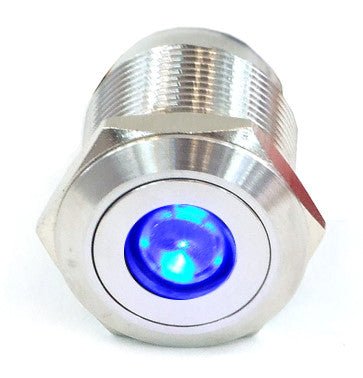

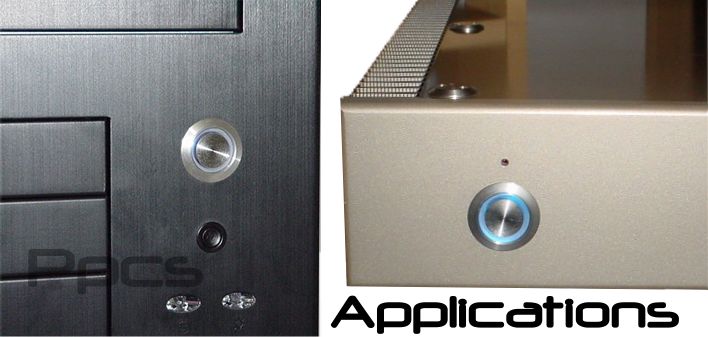

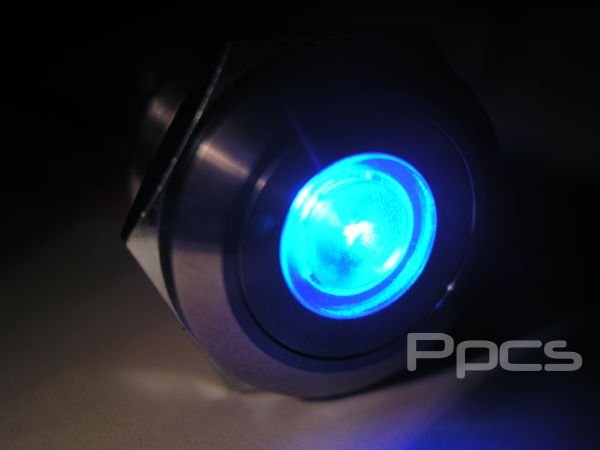

The vandal resistant momentary on/off switch is the ideal switch for computer modding enthusiasts. A momentary switch is typically used for a PC's power and reset button. When turned on, the ring or dot around the push button illuminates in the specified color. Easy to install and will fit it many case switch holes, on a regular 3.5 or 5.25 inch bay cover, or wherever you chose to mount it.

• Front Panel Mounting


• Ring or Dot Illuminated

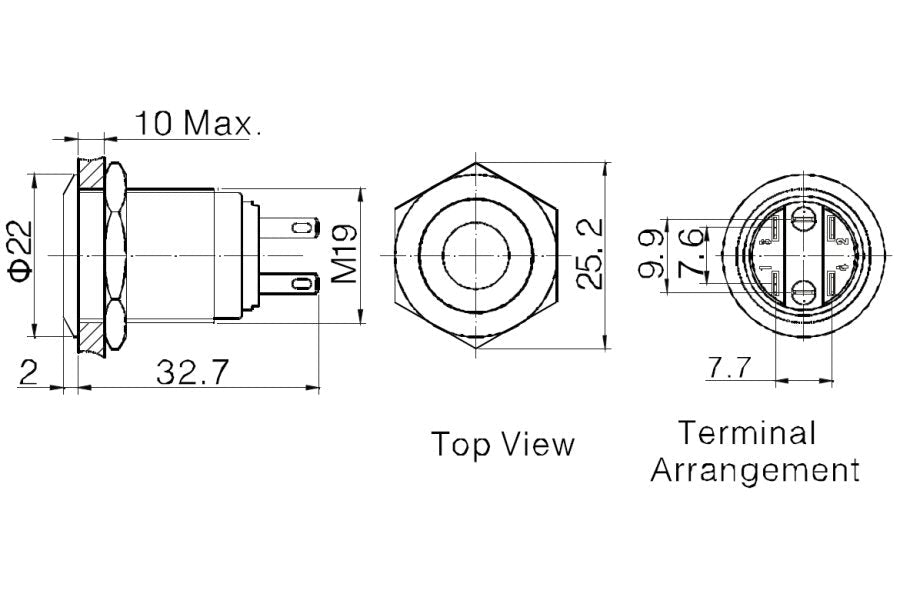

• 22mm bezel diameter


• 19mm shaft (install) diameter



• S.P. Push to Make


• 50mA, 24V dc contact rating Switch


• Bright Daylight LEDs

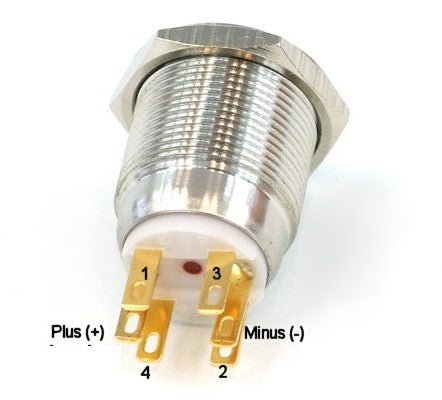

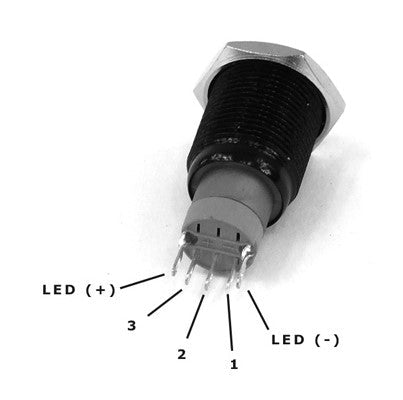

• Separate LED Terminals

• Terminations: (2.8mm tabs)


• Switching: S.P. Push to make, tactile S.P.or Push/Latch



• Max. Rating: 50mA, 24V d.c. switch


• Contact Resistance: <100mO.


• Insulation Resistance: >103 MO.


• Dielectric Strength: Contact to Panel >2.0kV


• Contact to Contact 1500V Contact


• Operating Temp. Range: .30C to +70C


• Sealing (Front of panel only): Protection Classification: IP66 EN60529


• Materials:
  Switch assembly: V-0 rated Polyamide (Nylon)
  Tags: Copper Alloy
  Terminals: Copper Alloy
  Switch Body & Button: Aluminum
  Lens and Lens Body: Polycarbonate
  O rings: Nitrile and Silicone
  Contact Plate: Gold Plated


• LEDs (ratings @ 20mA) Blue: 1500 mcd 3.0-12.0 V

NOTE: LED is rated for 3.0-12.0 Volts and the motherboard LED headers are 3.3V. This is acceptable

All switches are tested in house before shipment. Absolutely NO returns of switches that have a burnt out LED!
