USB Internal Header to Female socket

Product Details:

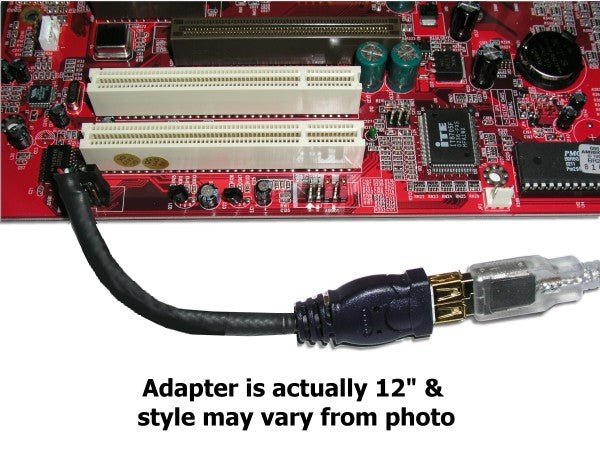

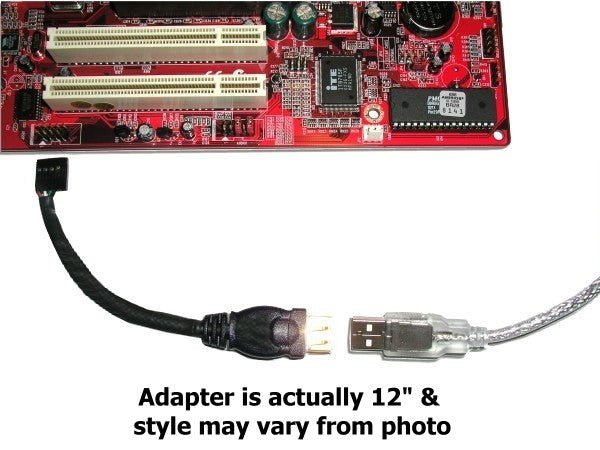

A Performance PC's custom made product to solve the ugly looping of USB cables thought the back of your computer. Now with our adapter you can connect USB devices directly to the motherboard headers and keep those USB cables out of view and neatly organized. This adapter is 12 long and is perfect to reach even the tallest cases. This product is perfect for our Matrix Orbital USB LCD displays or mini USB hubs.

Features:

• This cable adapter converts USB type A male to female header connector


• Cable is compatible with both USB 1.1 (standard) and USB 2.0 (high-speed)

Specifications:

PRODUCT NAME
USB Cable 1' - type A F to 1x5 F

CONNECTORS
USB type A female
1x5 header connector female - 0.1 / 2.54 mm pitch

CABLE
USB cable (UL 2725)
Length - 1 foot (305 mm)

WIRE ASSIGNMENTS



Red: + 5V / Voltage + / VCC
White: D - / Data - / USB -
Green: D + / Data + / USB +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current / Shielding

The S-GND wire is fatter and can be easily recognized.

Please consult your motherboard manual to check for pin outs of your USB headers. Pin one is usually the red wire in the USB cable/adapter.
