USB Internal Female Header to External USB A Port

Product Details:

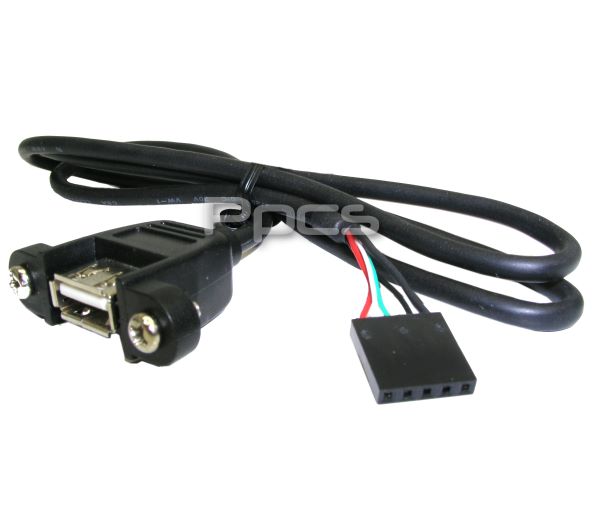

This cable extends 1 USB internal 5-pin header to an external A port that can be used on the front side of a computer system. Cable is compatible with both USB 1.1 (standard) and USB 2.0 (high-speed).

Specifications:

• The cable adapter end can be mounted anywhere on your case that you need an external USB A port.
• This cable contects to the internal 5-pin header of most any motherboard.
• For dual USB's application, you have to use 2 cables.
• The cable is compatible with both USB 1.1 (standard) and USB 2.0 (high-speed).
• Cable is 30 long.

Please consult your motherboard manual to check for pin outs of your USB headers. Pin one is usually the red wire in the USB cable/adapter.

Standard Wire Assignments

Red: + 5V / Voltage + / VCC
White: D - / Data - / USB -
Green: D + / Data + / USB +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current / Shielding

The S-GND wire is fatter and can be easily recognized.
