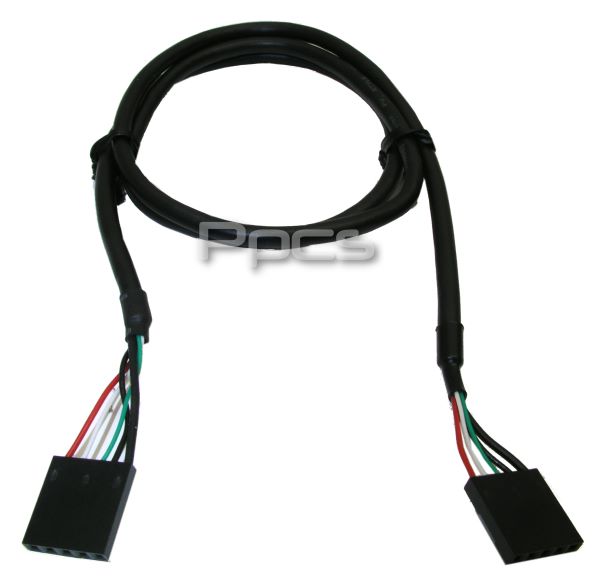

USB Internal Female 5-Row to Female 5-Row Cable
USB-F-USB-F-24
A Performance PC's custom made cable that can be used to connect many internal USB drives and other hardware that have a 5-pin header row to your computers motherboard USB header. Cable is 24 long. A very useful cable indeed! Please consult your motherboard manual to check for pin outs of your USB headers. Pin one is usually the red wire in the USB cable/adapter. WIRE ASSIGNMENTS Red: + 5V / Voltage + / VCC The S-GND wire is fatter and can be easily recognized. Product Details:
White: D - / Data - / USB -
Green: D + / Data + / USB +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current / Shielding
Thank you for your submission!
We will get back to you soon.
Estimate shipping
86 in stock, ready to ship
$8.95
/
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Product Details:
A Performance PC's custom made cable that can be used to connect many internal USB drives and other hardware that have a 5-pin header row to your computers motherboard USB header. Cable is 24 long. A very useful cable indeed!
Please consult your motherboard manual to check for pin outs of your USB headers. Pin one is usually the red wire in the USB cable/adapter.
WIRE ASSIGNMENTS
Red: + 5V / Voltage + / VCC
White: D - / Data - / USB -
Green: D + / Data + / USB +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current / Shielding
The S-GND wire is fatter and can be easily recognized.
