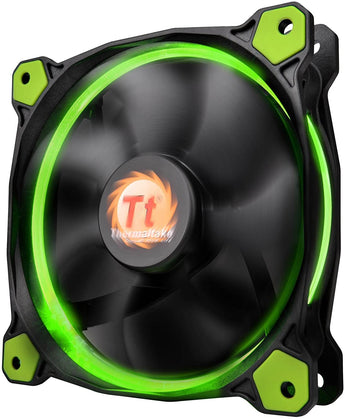

Thermaltake Riing 12 Series Green High Static Pressure 120mm Circular LED Ring Case/Radiator Fan

Riing 12/14 LED Series

High Static Pressure LED Radiator Fan

Thermaltake is proud to announce the new Riing 12 and 14 LED Series Case/Radiator Fans. Enhance static pressure to produce impressive cooling performance with optimized fan blades. Driven by hydraulic bearings, provide silent operation for extremely low noise operation and anti-vibration mounting. The patented LED Ring Series maintains color and brightness uniformity; the lighting effect is visible from all sides and angles. The multi-colored LED ring (in yellow, orange, red, blue, white, and green) adds style to any chassis.

Multi-use Cooling Support

Air Cooling Applications

Designed to increase chassis cooling performance and bring a unique look to the system with patented LED Riing lighting.

- Available in 120 millimeter and 140 millimeter sizes in multiple colors.

- Includes (4) coarse thread screws for chassis installation.

Liquid Cooling Applications

Ideal for liquid cooling applications, increase radiator cooling performance and bring a unique look to the system with patented LED Riing lighting.

- Available in 120 millimeter and 140 millimeter sizes in multiple colors.

- Includes (4) M3 thread screws for radiator installation.



Wind Blocker Frame

To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Bladeâ??s (CCB) pressure mechanism by directing airflow towards the outer section of the blade, thereby creating a compression effect and blocking any pressure from escaping. This reduces the bladeâ??s noise and vibration, creating a perfect balance between power and sound.

Hydraulic Bearing Design

The hydraulic bearing self-lubricates with a high quality, friction-reducing substance which lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the lifespan of the unit. The LNC (Low-Noise Cable) can reduce the noise level by 24% from 24.6 dBA to 18.7 dBA.





P/N: CL-F038-PLI2GR-B

Fan Dimension: 120 x 120 x 25 mm

Started Voltage: 9.0 V

Rated Voltage: 12.0 V

Rated Current: 0.2 A

Power Input: 2.4 W

Fan Speed: 1500 R.P.M, 1000 R.P.M (with LNC)

Max. Air Pressure: 2.01 mm-H2O

Max. Air Flow : 40.6 CFM

Noise:  24.6 dB-A, 18.7 dB-A (with LNC)

Bearing Type: Hydraulic Bearing

Life Expectation: 40,000 hrs,25â??

Connector: 3 PIN + LNC (Low-Noise Cable)

Weight : 158.8 g.
