Techflex Flexo Wrap Hook and Loop Expandable Sleeving 2" - Black

FLEXO WRAP (FW) is an exclusive product engineered and manufactured by Techflex. FW provides the perfect solution to a wide variety of unique application challenges.

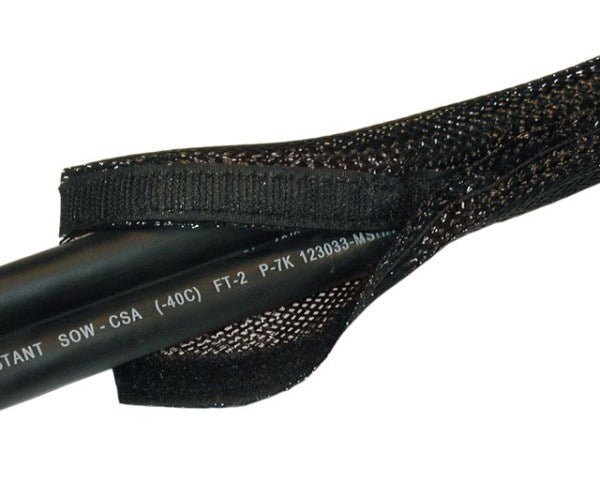

Flexo wrap cable sleeve has a hook and loop fastener which makes it easy for the users to insert more wires and cables without complicating the existing connections over the entire bundle.

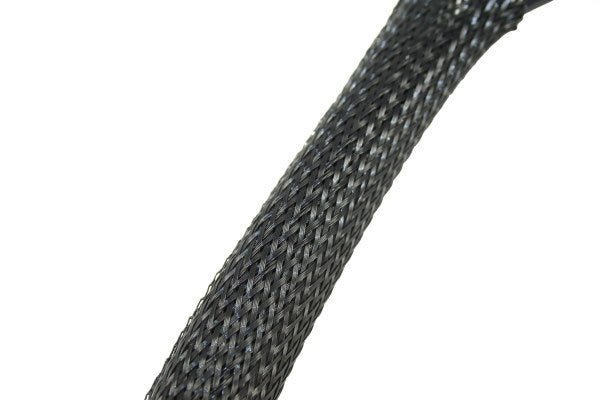

This premium-grade cable sleeve is manufactured from polyethylene terephthalate monofilament material which has a high-temperature resistance. Its open expandable open weave design allows it to conform to a wide variety of bundle diameters even irregular shapes.

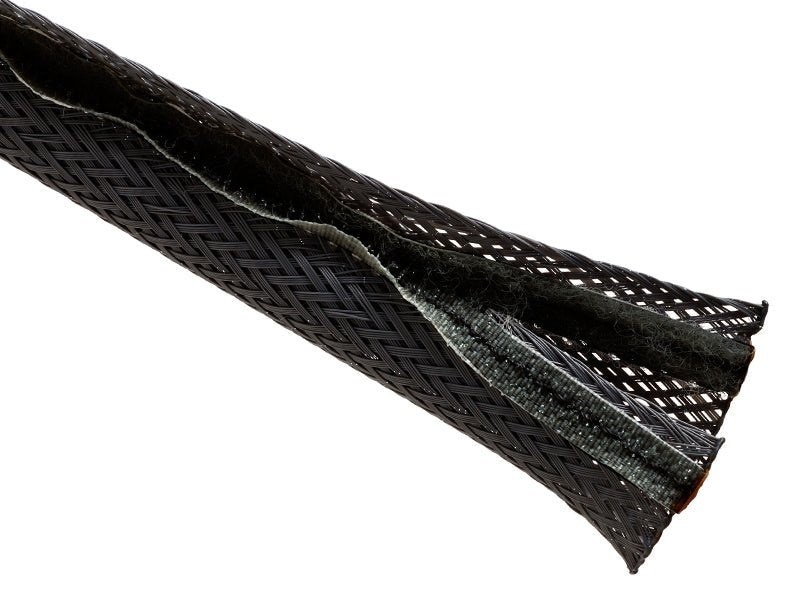

The color matched hook and loop closure provides for easy on and off installation, as well as instant and convenient access for harness break-outs and rework of any specific section along the entire length of the run. Combined with the expandable, open weave design, FW will conform to a wide variety of bundle diameters and will wrap around irregular shapes.

All grades of FW cut cleanly with a hot knife.

This product is sold and priced BY THE FOOT. The is cut to order and non-returnable for any reason.

Installation:

Features:

• Heavy Duty Hook and Loop Closure for Frequent Access

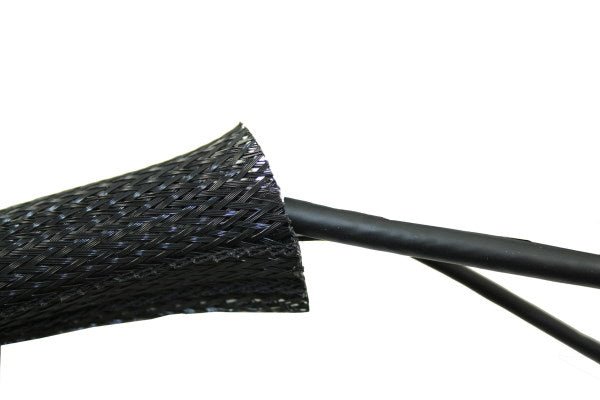

• Expands To Fit Over Inline Connectors and Splices


• Halogen Free


• Temp Range -75°C to 125°C


• Melt Temp 230°C

Specifications:

Techflex makes every effort to ensure accuracy and completeness when describing the technical properties of our products. Customers are encouraged to test and evaluate the products for their own unique requirements.

Nominal Size	Product Part #	Hook & Loop Width Â	Standard Spool Put-Ups		Available Colors	Lbs/ 100'
			Bulk Spool	Shop Spool
1/2 3/4 1 1/4 2 2 1/2 Â	FWN0.50 FWN0.75 FWN1.25 FWN2.00 FXN2.50BK Â	1/4 5/8 5/8 5/8 5/8   Â	100' 100' 100' 100' 100' Â	20' 15' 12' 10' 10' Â	BK, WH, GY & BE BK, WH, GY & BE BK, WH, GY & BE BK, WH, GY & BE BK Â	1.30 1.80 2.30 3.20 3.75



Physical Properties		Â	Hard Vacuum Data (ASTM E-595 at 10-5 torr)
Monofilament Thickness (ASTM D-204)	.010	Â	TML	.19
Flammability Rating	Â	Â	CVCM	.00
Recommended Cutting	Hot Knife	Â	WVR	.16
Colors	4	Â	Smoke D-Max (ASTM E-662)	56
Wall Thickness	.025	Â	Outgassing	Medium
Tensile Strength - Yarn (ASTM D-2265) lbs.	7.5	Â	Oxygen Index (ASTM D-2863)	21
Abrasion Resistance	Medium	Â	Operating Temperatures	Â
Specific Gravity	1.38	Â	Minimum Continuous	-103°F/-75°C
Moisture Absorption % (ASTM D-570)	.1 - .2	Â	Maximum Continuous (MIL-I-23053)	257°F/125°C
Â	Â	Â	Melt (ASTM D-2117)	482°F/250°C
Â	Â	Â	Â	Â
Chemical Resistance       1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents	2	Â	Alipahtic Solvents	1
Chlorinated Solvents	3	Â	Weak Bases	1
Strong Bases	2	Â	Salt Water (O-S-1926)	1
Hydraulic Fluid (MIL-H-5606)	1	Â	Lubricating Oil (MIL-A-8243)	1
De-Icing Fluid (MIL-A-8243)	1	Â	Strong Acids	3
Strong Oxidants	2	Â	Esters/Keytones	1
UV Light	1	Â	Petroleum	1
Fungus (ASTM G-21)	1	Â	Salts	1
Â	Â	Â	Â	Â
Halogen Free	Yes	Â	RoHS	Yes
SVHC	None	Â	UL/CSA	Yes
Â	Â	Â	Â	Â
