Features
- Integrated Water-cooling Features
- Reservoir, D5 Pump Top, D5 Pump Cover, Fill Port, Drain Port, roughly half of the cooling loop.
- Integrated Cable Management Features
- Cable management channels with cable combs:
- 8pin EPS on the left side of motherboard: x3.
- 8pin EPS above the 24pin: x2 (Maximum 3x EPS can be used at the same time).
- 24pin Cable: x1.
- SATA Data x4.
- PCIE go through the PSU Top Shroud: x6.
- Reduced build time due to integration
- With the pump and reservoir combo and roughly half of the loop integrated there is less assembly to be done.
- Cable management is far quicker, just clip your cables in and they are all perfectly aligned.
- Integration Cost Component:
- A large portion of the case cost is due to the integration. These are components you do not have to purchase for your build. The pump and reservoir combo, less fittings, less tube, no cable combs, or cable management components.
- Compatibility:
- Theoretically the more integration the less compatibility. For Spectres integration the position of each integrated port and cable routing hole was carefully chosen based on statistics and our experience.
- Integration & Optimization:
- With the integration we did not just develop a case, we also had to develop all the integrated components. This meant that we could focus more on optimization than would normally be possible.
- The pump top was designed for the D5 pump, maximizing flow to and from the distribution plate.
- The reservoir was designed to remove air as quickly as possible making the loop easier to fill.
- The fill port is at the highest point on the back for the case and the drain point at the lowest point.
- The cable channels and combs are designed for 4mm sleeved cables. They can be clipped in very quickly and there is far less work to do for clean cable management.
- High End Components:
- Spectre 3.0 fits XL-ATX motherboards and has 8 expansion slots. It is designed to fit the RTX 3090 Founders Edition even with the stock cooler. It can fit the largest PSUs up to 220mm. For the cooling system it can fit 2x 360mm radiators 60mm thick with a single set of fans and the powerful D5 pump.
- Radiator Adjustment:
- The radiator mounts have a large range of adjustment to help with port alignment to the distribution plate.
- Storage:
- Spectre 3.0 has 6x 2.5â? Drive positions, 4 of these can be used at the same time. Two are on the top of the PSU shroud and there are four inside of the PSU shroud. The two on top of the PSU shroud cannot be used with vertically mounted GPUs.
Â
Design & Engineering
We are all experienced system builders at Singularity Computers. Our approach to product development begins with a need for our own builds and so the origin is always function. From there we start to build ideas around this function and the aesthetics and everything else follows. The original idea for Spectre came our years of building highly customized, high end water-cooled systems and trying to reduce the exceptionally long build times and complexity. Our approach to development is very hands on, we are doing real world testing every day.
The aesthetics of Spectre originate from its function with one of the main aesthetic features (the lighting) being something only made possible by the integration. We wanted the case to look skeletal and almost transparent enough to (in a way) disappear around the components. The metal components have been designed to enhance this with an extreme focus on detailed and complex multi sided CNC machining.
Â
Manufacturing & Quality

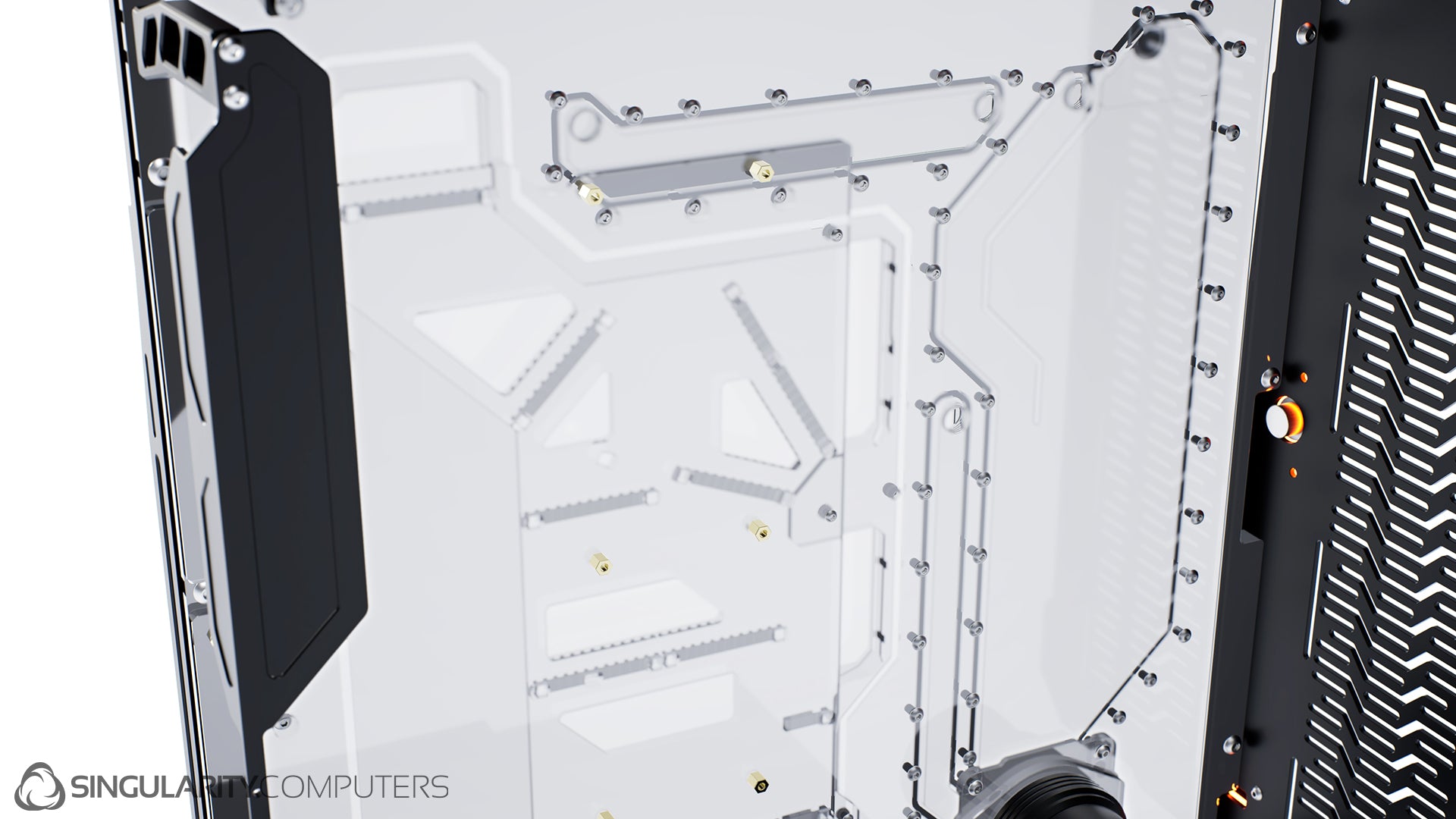

Every component of Spectre is CNC machined from a solid block of material. With the level of transparency and being an open case, we wanted it to be a celebration of the raw materials. There is no hidden or back side, and this also goes for the components being installed. Due to this we selected the most high-end materials and manufacturing processes. The Distribution Plate is machined on a CNC router built from thick sheets of cast acrylic. It is hand assembled with silicone gaskets and stainless-steel fasteners, and pressure tested. The metal components are machined with Extreme Precision from solid blocks of 6061 aluminum on a CNC mill then sand blasted and anodized.
