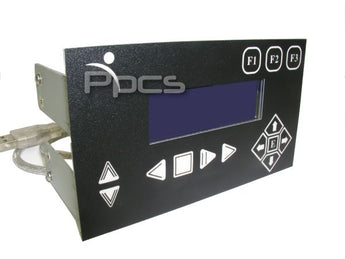

Matrix Orbital MX412 - 4 Line USB LCD - White on Blue

MX4 series: The ability to Entertain and Inform

Don ’t let the imitations fool you. Get the original and most advanced in PC Bay inserts. With the new MX4 series we have enlarged the size of the display and added more keypad functionality. This double drive bay PC insert incorporates a 20 character x 4 line USB display and a 15 button keypad. The MX4 also allows you to plug 4 fans in directly to the back of the unit for all you quiet and cooling PC needs. You can also plug in 6 temperature probes to take accurate temperatures anywhere in your PC. You get the choice of 4 vibrant colors and four different overlays.

Features:

• 15-button keypad in 2 colors or Real Aluminum faceplate in 2 colors


• 4 vibrant colors:



  • deep sea blue background/ bright white text


  • sky gray-white background/ blue text


  • dark blue background/ yellow text


  • green-yellow background/ black text (for traditionalists)






• Attach 4 fans directly to the MX4 for extra cooling


• Connect up to 6 temperature probes for accurate system temperature monitoring


• Connect a LED Indicator for visual notification of e-mails or system status Software and manual on supplied CD

Here are some of the many plug ins available:

• Motherboard Monitor, Hardware System Monitor, Service checker for NT/W2K/XP Winamp 2 or 3, Nero Burning Rom, Zoom Player Current Weather, Stock quotes, E-mail Checker, SETI@HOME, Trillian FRAPS, United Devices, ASE Game Server BulletProof FTP, MIRC

Please visit http://www.lcdforums.com/forums/ or http://www.LCDC.cc for more plug ins.

Appearance:

• 20 characters x 4 lines


• Fits into a two 5.25" drive bays

LCD Screen Gallery: http://www.lcdforums.com/gallery/

Specifications:

Appearance 20 characters x 4 lines Module size: 98 mm(L) x 60 mm(W) x 24.4mm(T) Display size: 76.3mm(L) x 25.0mm(W) Character size: 2.95 x 4.75mm Blue Background White Text   Black Keypad Overlay		Functional Capabilities Variable brightness backlight Software and manual on CDROM Memory chip saves settings Available in a PC drive bay insert.
Interfaces Interface with up to 24-key keypad Use 6 General Purpose Outputs Communicate over USB		Speed USB mode : 19.2 Kbps using VCP or direct USB 1.0 or 2.0 communication Fully buffered - no delays in transmission
Includes   Display, 3ft A to B USB Cable and software.		Power Requirements Supply Voltage: +4.75 to +5.25Vdc Supply Current: 25mA typical Backlight Supply Current: 115mA typical

Temp Probes, Internal USB cables,  and Indicators can be ordered separately below.
