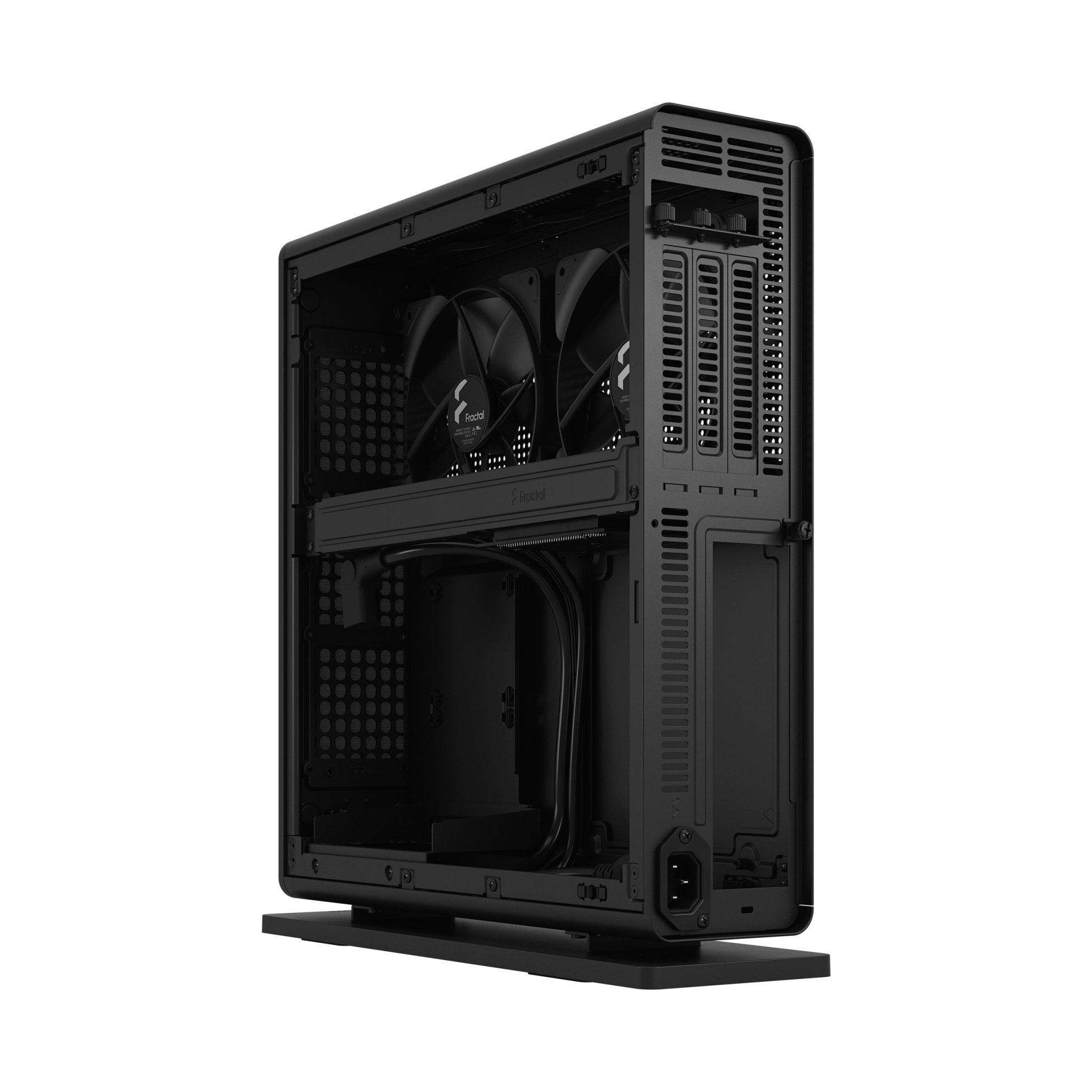

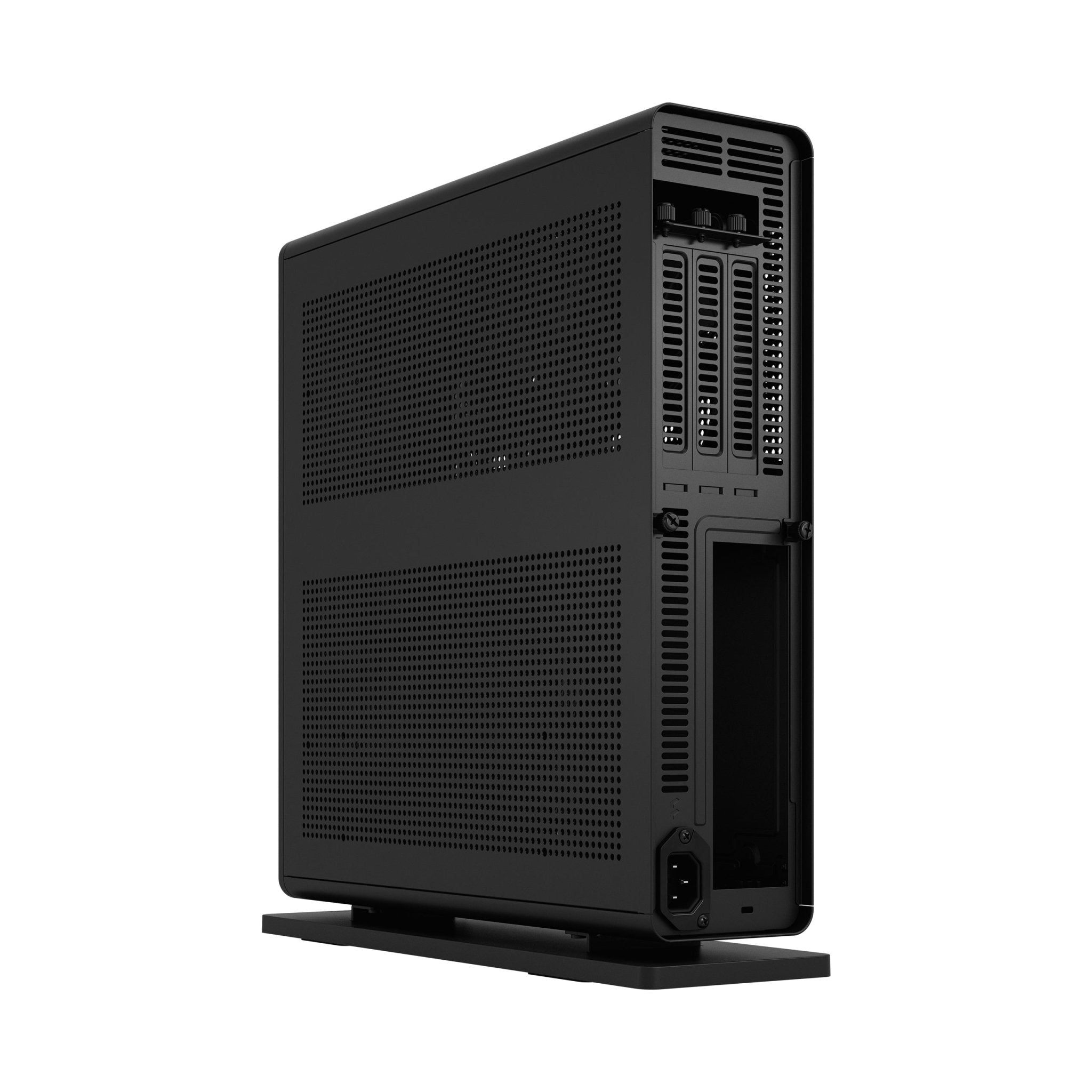

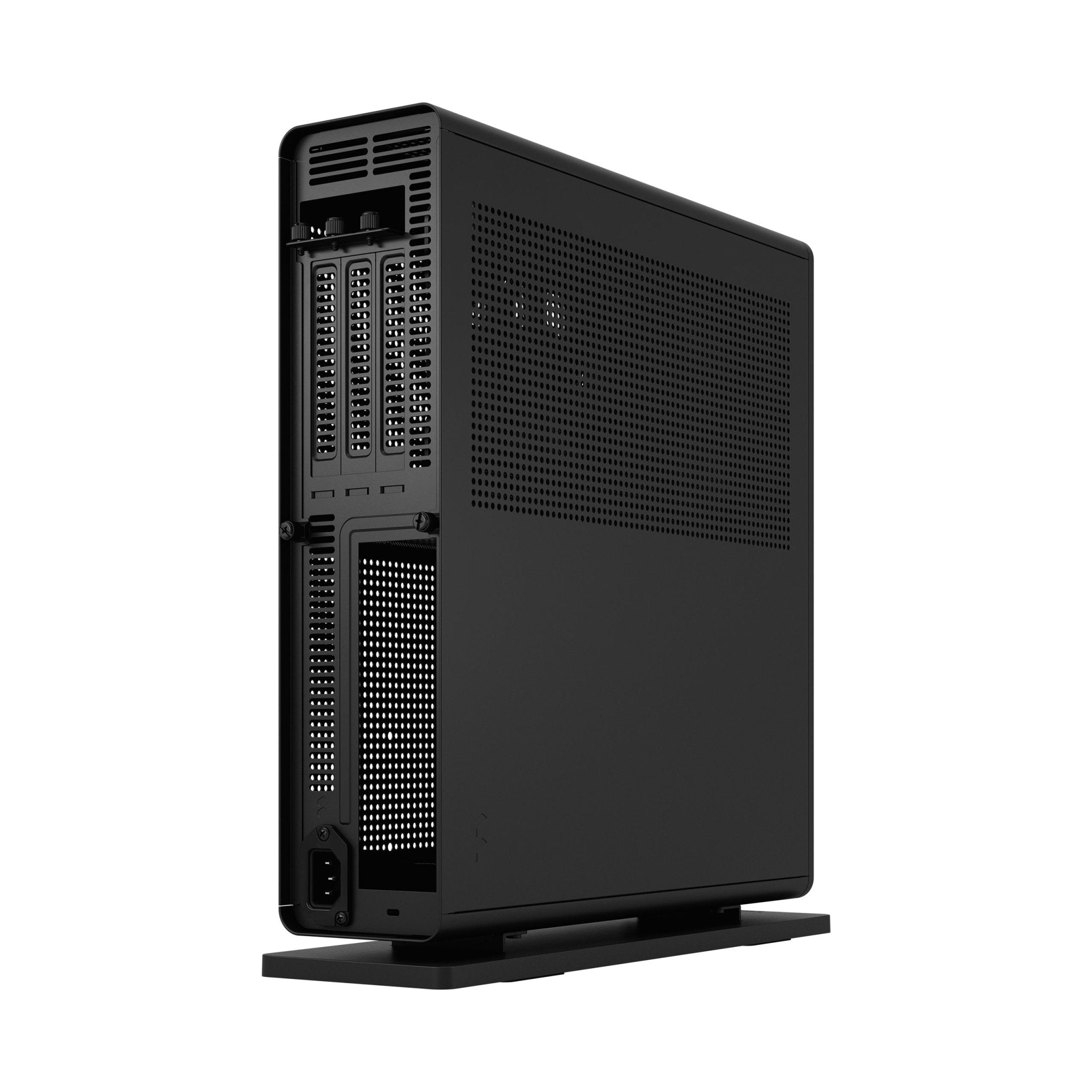

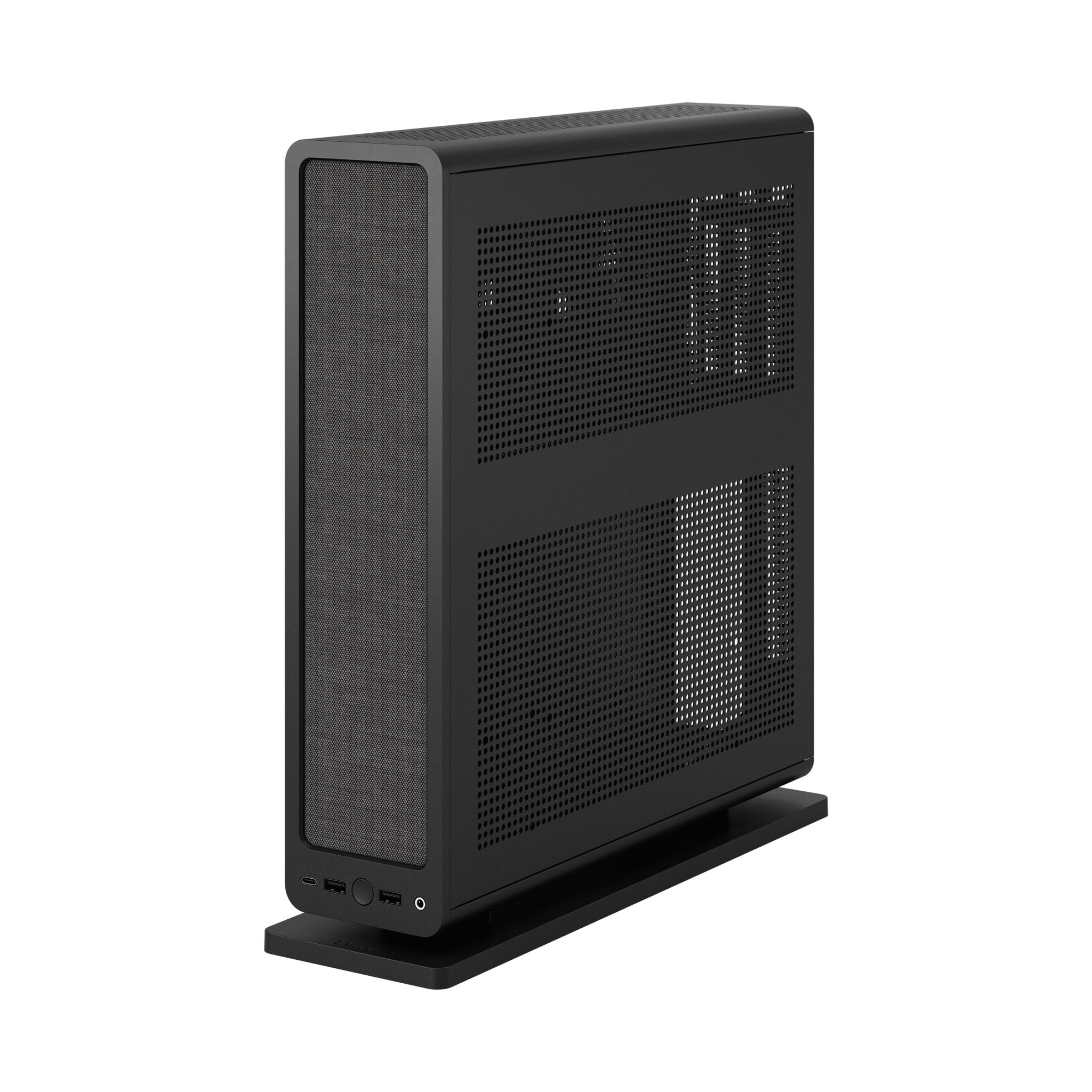

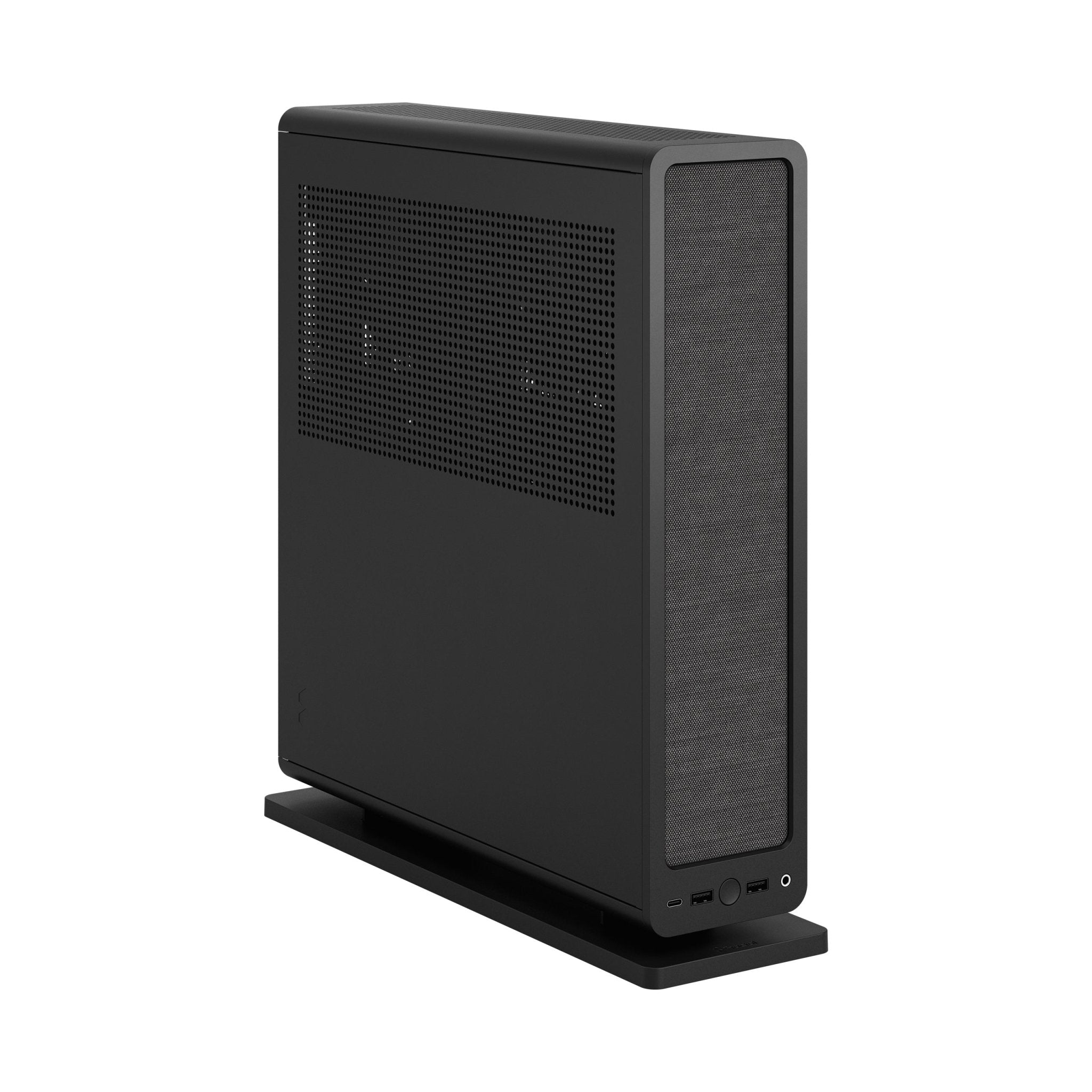

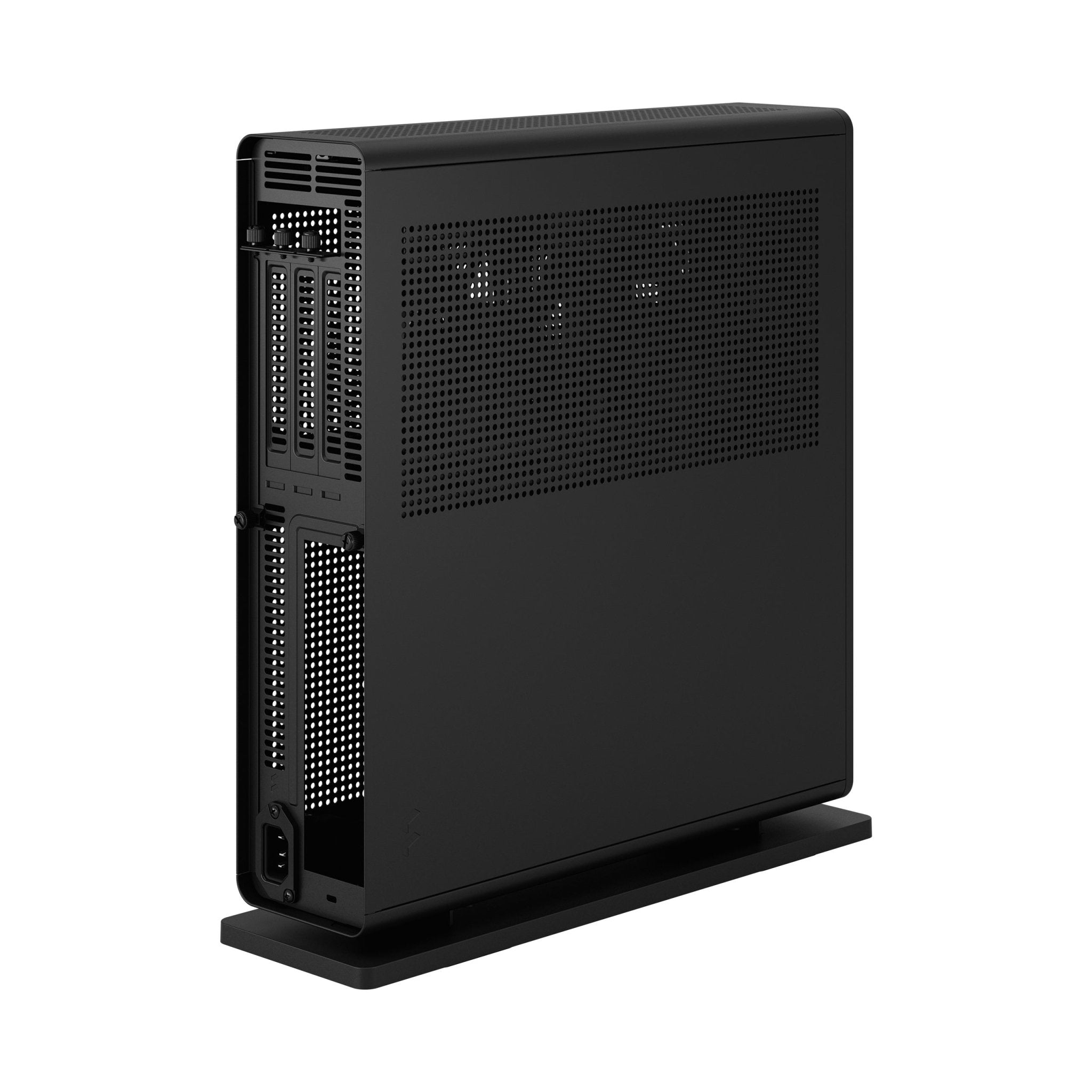

Fractal Design Ridge Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser - Black

Fractal Design

FD-C-RID1N-01

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$129.95
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Inch-perfect efficiency

  • Meticulously engineered to maximize its capability while minimizing its footprint
  • Small form factor case with a volume of 12.6 liters
  • Supports GPUs up to a length of 335 mm

Horizontal or vertical

  • Multiple feet configurations allow for both horizontal and vertical orientation
  • Elevate any gaming desk, workspace or entertainment area
  • Unrivalled access
  • Remove any panel to gain easy access to every side of your build

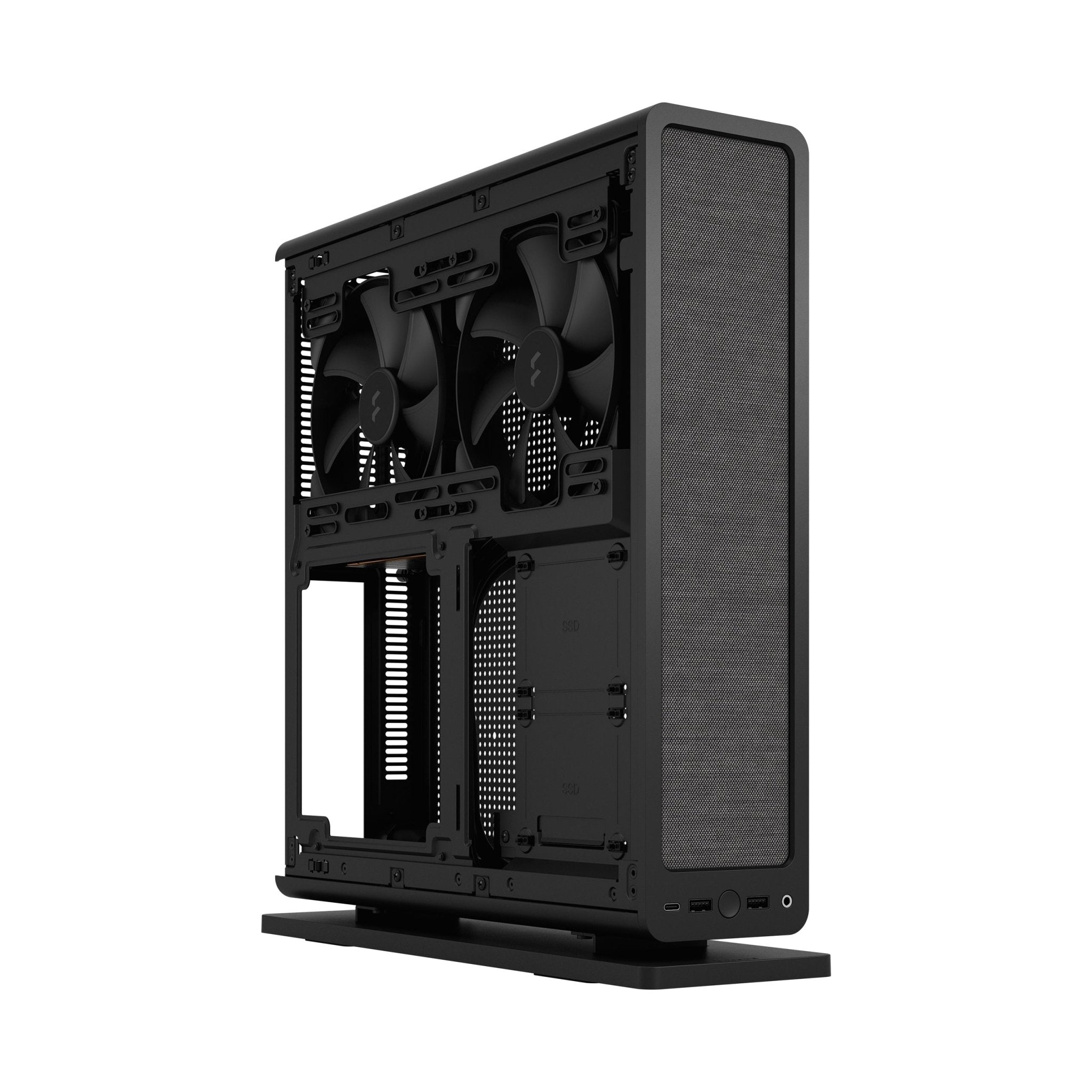

All-around ventilation

  • Ventilated on all sides to maximize its cooling potential

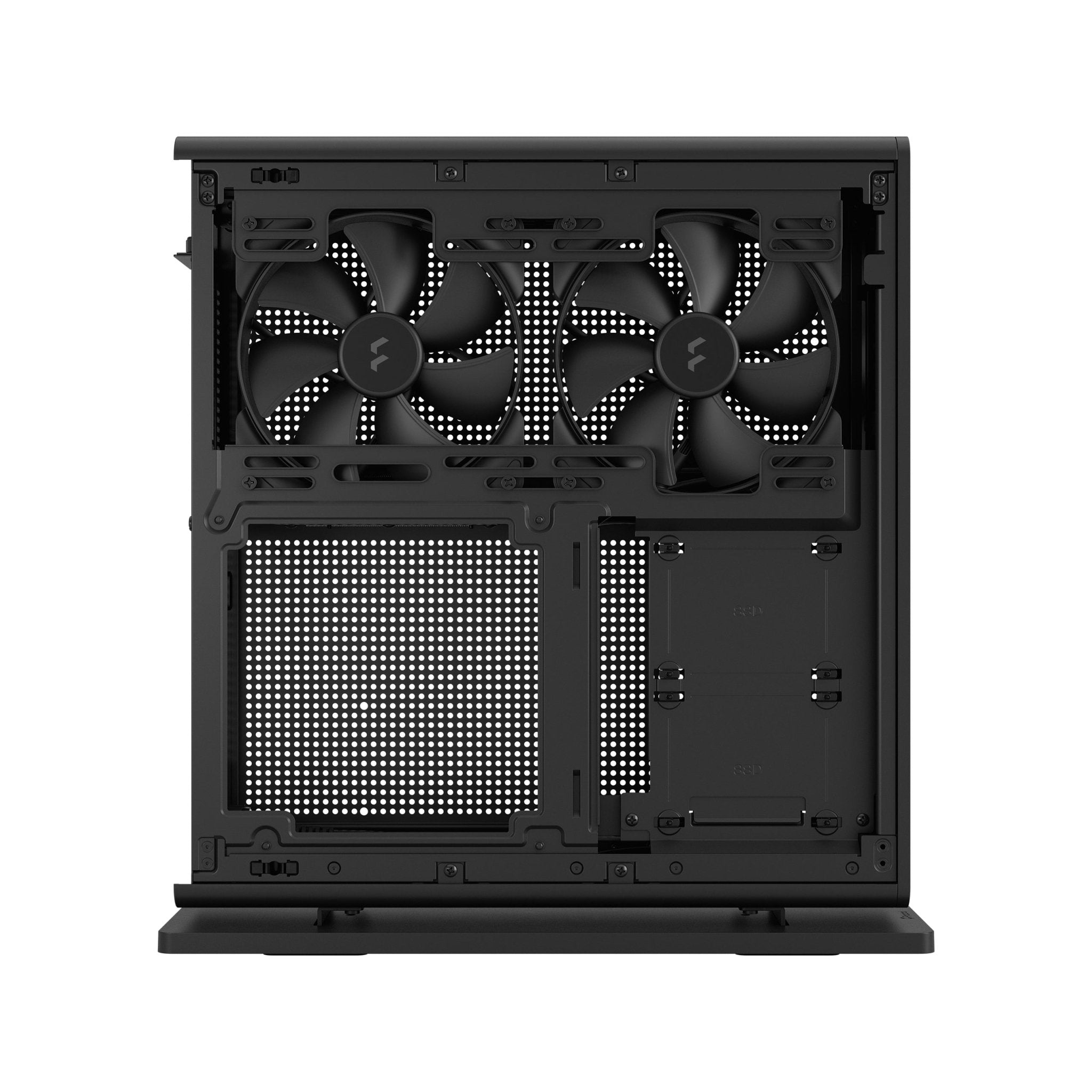

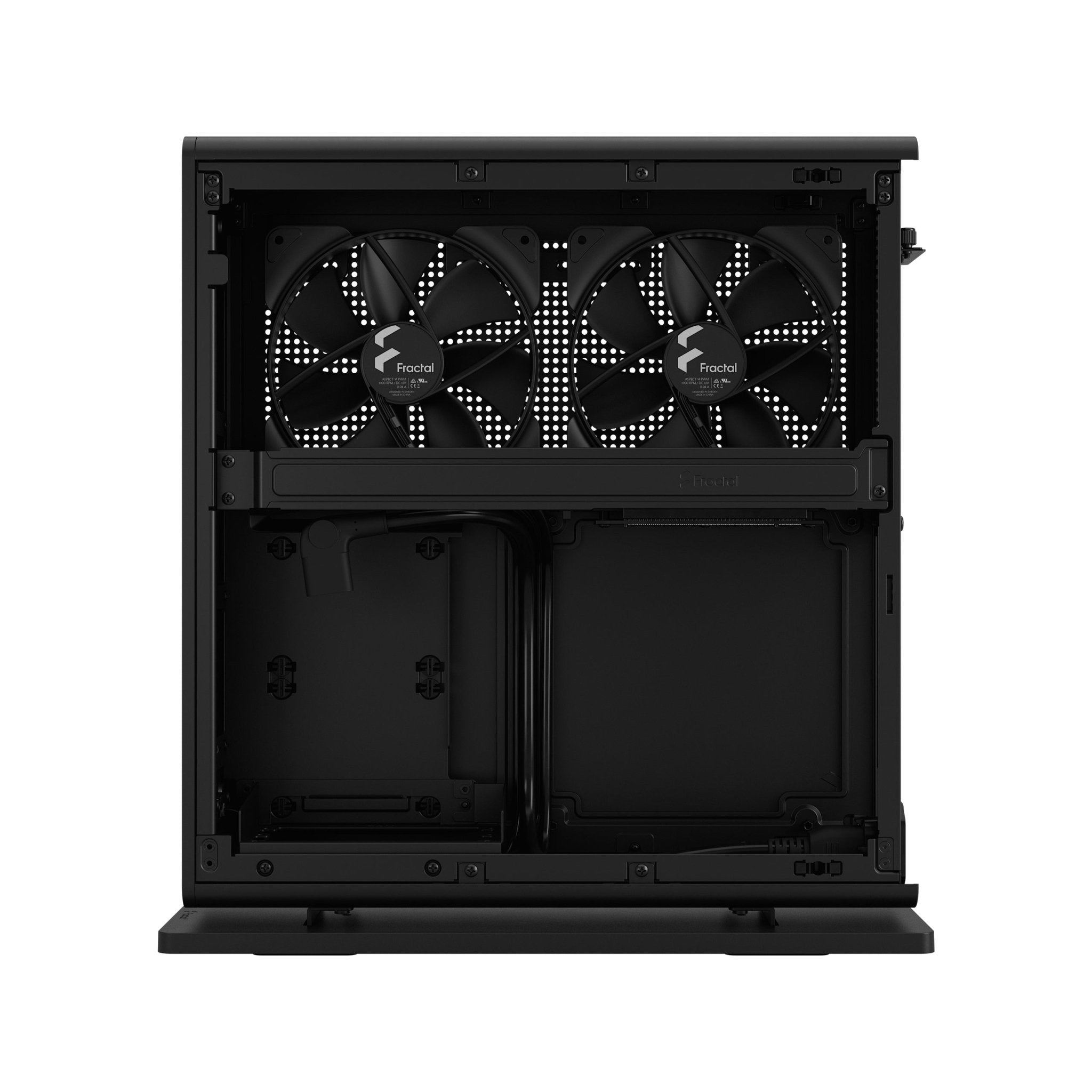

  • Comes with 2x 140 mm PWM Aspect fans pre-installed
  • Supports 2x 120/140 mm and 3x 80 mm fans

Well-balanced design

  • Stylish fabric front with CNC machined aluminum frame
  • Features a Power LED bar in front

Type-C interface

  • Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone

Smart configurations

  • Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
  • Four 2.5â? drive mounts included
Features

Features:



  • Supports GPUs up to a length of 335 mm

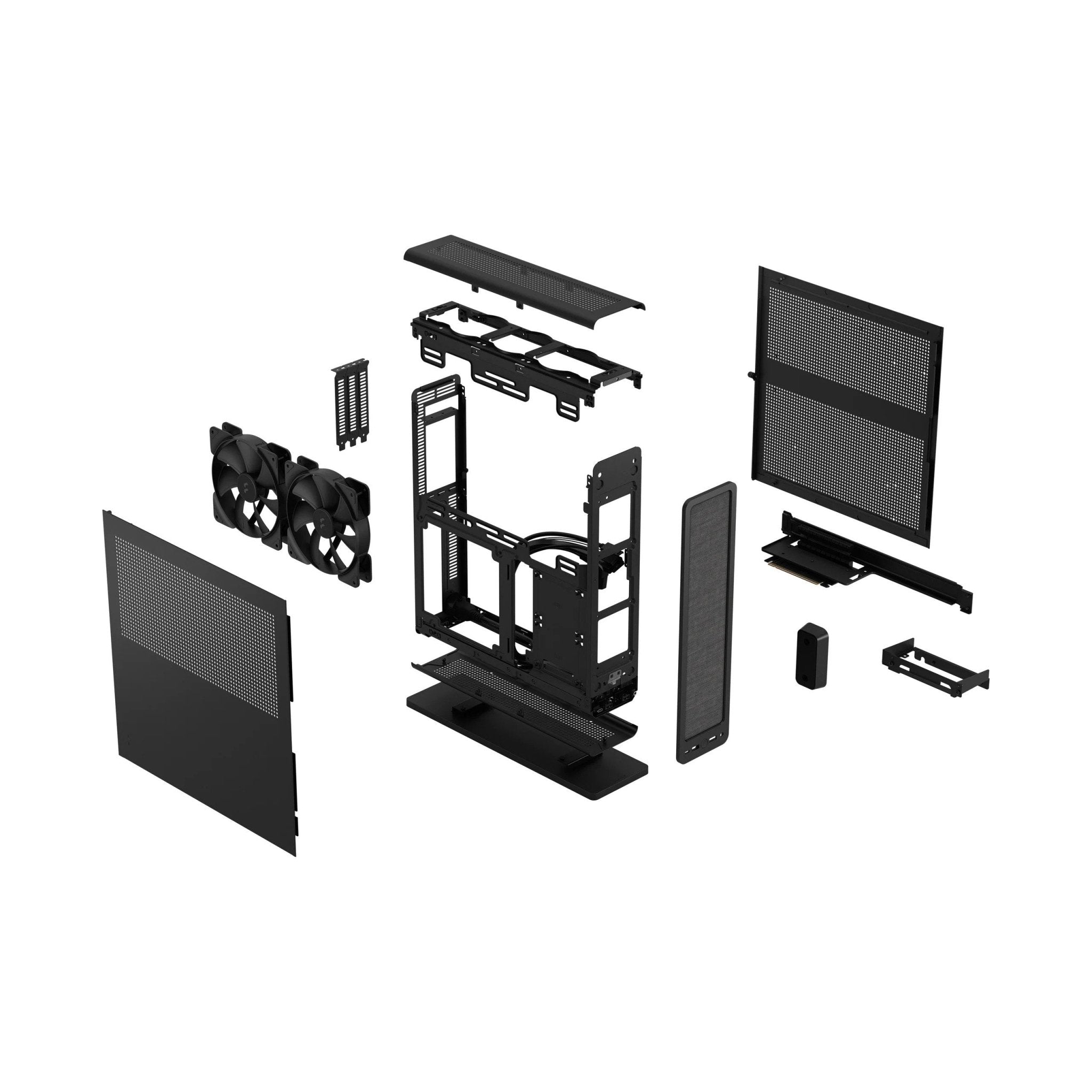

  • All panels are removable, enabling maximum accessibility

  • Available with either PCIe 4.0 or PCIe 3.0 riser card
Specifications








Specifications






  • Dedicated 2.5 drive mounts

    4x included, 4x positions total

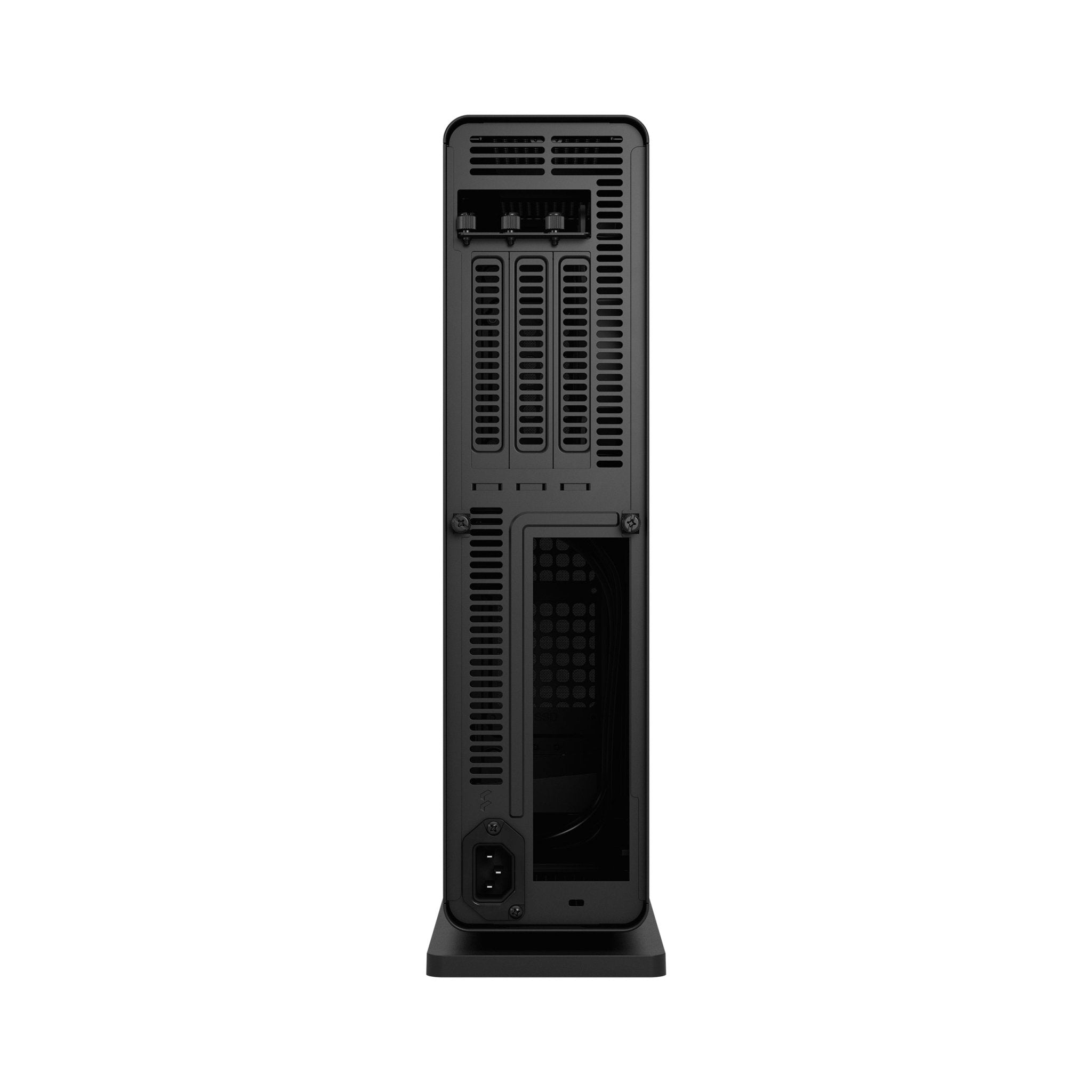

  • Expansion slots

    3-slot



  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack â?? Audio/Microphone, power button, power LED



  • Total fan mounts

    2x 120/140 mm and 3x 80 mm



  • Side fan

    2x 120/140 mm (2x PWM Aspect fan 140 mm included)



  • Top fan

    3x 80 mm (not included)



  • Cable routing space

    13,8 mm (behind PSU)



  • Tool-less slide with thumbscrew lock

    Side panels



  • Captive thumbscrews

    Side panels



  • Left side panel

    Steel



  • Right side panel

    Steel







Compatibility






  • Motherboard compatibility

    Mini ITX



  • Power supply type

    SFX, SFX-L



  • Side radiator

    120 mm when â?¤175mm long GPUs are installed (280 mm without GPU)



  • PSU max length

    SFX-L



  • GPU max length

    325 mm with SSD installed. 335 mm without SSD installed.



  • GPU max height

    125 mm with top fan(s) installed, 137 mm without top fans



  • GPU max thickness

    57 mm with 2x 140 mm fans installed, 82 mm without side fans



  • CPU cooler max height

    70 mm







Dimensions






  • Case dimensions

    Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm



  • Case dimensions w/o feet/protrusions/screws

    355 x 95 x 375 mm



  • Net weight

    4.3 kg



  • Package dimensions (LxWxH)

    426 x 167 x 431 mm



  • Gross weight

    5.5 kg



  • Volume

    12.6 liter







Other






  • Package contents

    Case, Accessory box, Manual



  • SKU (Ridge)

    Black: FD-C-RID1N-01, White: FD-C-RID1N-02



  • SKU (Ridge PCIe 4.0)

    Black: FD-C-RID1N-11, White: FD-C-RID1N-12



  • EAN (Ridge)

    Black: 7340172703969, White: 7340172703976



  • EAN (Ridge PCIe 4.0)

    Black: 7340172706090, White: 7340172706106



  • UPC (Ridge)

    Black: 843276103965, White: 843276103972



  • UPC (Ridge PCIe 4.0)

    Black: 843276106096, White: 843276106102



  • JAN (Ridge)

    Black: 4537694302494, White: 4537694302500



  • JAN (Ridge PCIe 4.0)

    Black: 4537694323123, White 4537694323130



  • Warranty

    2 Years
