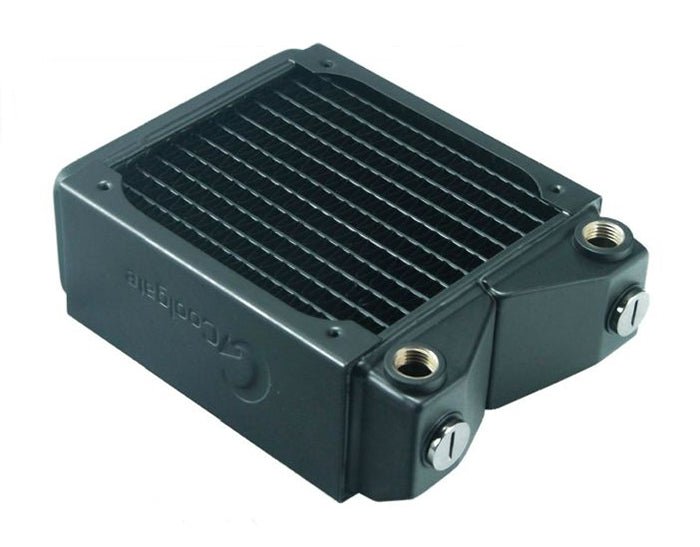

Coolgate Ultimate Performance Copper Tube 120mm Radiator

Coolgate Ultimate Performance Copper Tube 120mm Radiator

•

  PERFECT HEAT TRANSMISSION
  Optimal FPI (fins per inch) is designed for low speed fans to guarantee silent operation




•

  GREEN ENERGY
  Protect environment by using RoHS compliant components, recycled materials and lead-free production




•

  EASE OF USE
  4 G1/4Â? threads and UNC 6-32 screw threads allow multiple and flexible installations and configurations




•

  HIGH FLOW OPTIMIZED
  Triple parallel rows minimize water resistance and achieve optimal cooling performance




•

  THREE YEARS WARRANTY
  Based on long-standing professional research, development and production we provide full 3 years warranty on Coolgate heat exchangers



Specifications:

• Tubes with 90% copper


• Tubes Triple Row 13mm x2mm


• Material: Copper Fins, Brass Chambers


• 7 FPI (Fins per inch)


• 4 x G 1/4 Threads


• Weight: 750g


• Liquid Volume: 200 ml


• Pressure Tested: 1.5 Bar


• Dimensions: 169.6 x 124 x 60mm


• 6-32 UNC threads on both sides for push pull with 120mm fans

Delivery:

• 4 pcs 1/4 in- and outlets


• 1/4 filling port on bottom cap


• Color carton and silicon pads


• 3 pcs black brass plugs.


• 2 set UNC6-32 screws each 30mm and 5mm long
