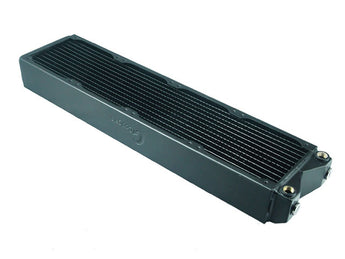

Coolgate Quad 120mm Ultimate Heat Exchanger Radiator
CG-480
The Coolgate Quad 120mm Heat Exchanger is a combination of all the best rad designs making it versatile and a performance beast. Designed with triple parallel rows minimizes water resistance the Coolgate series achieves optimal cooling performance. Featuring inner tubes made of 90% copper this series is made for high end performance. Set up options are available with the dual in and out G1/4 threaded ports along with the fill port on the opposite side making this the most flexible radiator available. Fan silencers are included as well for silent operation and a great seal to the radiator.
Bitspower Fittings
|
Choose your Fitting(s) |
|
Add Bitspower Rigid Compression Fitting(s) |
Estimate shipping
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details
The Coolgate Quad 120mm Heat Exchanger is a combination of all the best rad designs making it versatile and a performance beast. Designed with triple parallel rows minimizes water resistance the Coolgate series achieves optimal cooling performance. Featuring inner tubes made of 90% copper this series is made for high end performance. Set up options are available with the dual in and out G1/4 threaded ports along with the fill port on the opposite side making this the most flexible radiator available. Fan silencers are included as well for silent operation and a great seal to the radiator.
Radiator can be used for multiple loop systems, (shared fluid)!
Note: Radiator comes with 5 total ports and 3 plugs, a minimum of 2 G1/4 threaded fittings are required for usage
Features
- Tubes with 90% copper
- Protect environment by using RoHS compliant components, recycled materials and lead-free production
- Optimal FPI (fins per inch) is designed for low speed fans to guarantee silent operation
- 4 G1/4Â? threads and UNC 6-32 screw threads allow multiple and flexible installations and configurations
- Based on long-standing professional research, development and production we provide full 3 years warranty on Coolgate heat exchangers
- Triple parallel rows minimize water resistance and achieve optimal cooling performance
Specifications
| Weight: | 1780 g |
|---|---|
| Liquid Volume: | 500 ml |
| Pressure Tested: | 1.5 Bar |
| Dimensions: | 533,6 x 124 x 60 mm |
| Pressure Tested: | 1.5 Bar |
| FPI (Fin per Inch): | 7 |
| Material: | Copper Fins, Brass Chambers |
| Screw Thread Length: | 6.5mm 30mm |
| Included: | Coolgate Series Radiator 4 x Silicon Fan Silencer 16 x 6-32 thread 30mm length screws 16 x 6-32 thread 6.5mm length screws 3 x G1/4 Brass Plugs |
