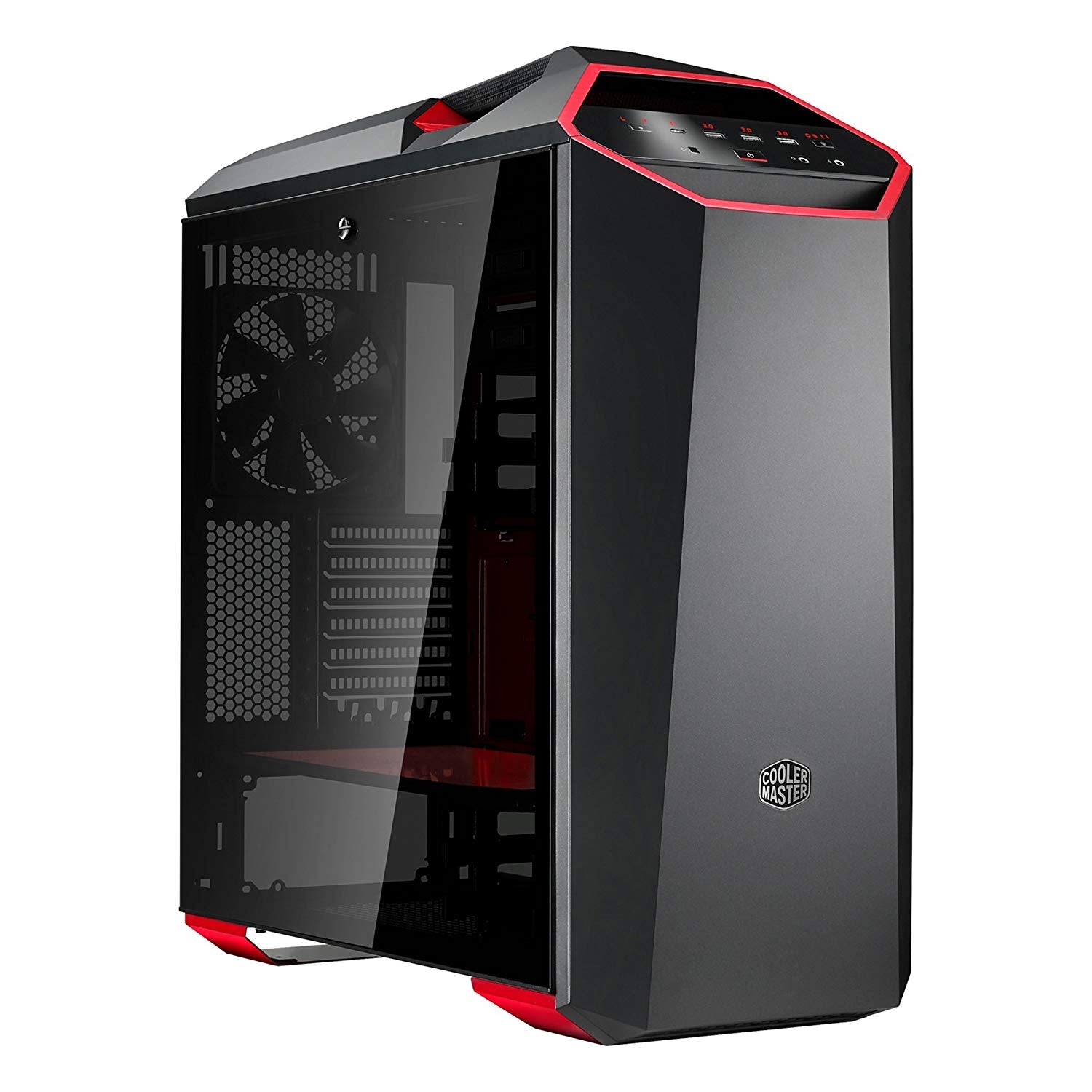

Cooler Master MasterCase MC500MT Mid-Tower ATX Case

Cooler Master is breaking new ground in the way cases are designed, made and used.

Fundamental to this re-imagining is FreeForm. We want you to have absolute control over how your case looks and functions, and that means giving you the option to adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout.

Frame with Removable Partition Plate
The option to relocate the M.port and remove the partition plate gives you the freedom to adjust the inside of the case.With the partition plate installed, you isolate the power supply and cables for a clean build.

RGB enabled
Comes pre-installed with a RGB LED partition plate and with a fan and RGB lighting control board.

Advanced I/O Panel
Four USB ports, including one 3.1 Type C, added buttons for LED strip and fan speed control.

Clear View Inside
An edge-to-edge light grey tinted tempered glass side panel gives a wide view inside your PC to showcase your masterpiece.

Cable Management Cover
Cooler Master was the first to make a CPU cut out hole and we are the first to cover it again.
A PSU shroud and additional cable covers take cable management to the next level. Assemble clean builds like a pro!

Adjust Internal Layout Clip-and-Click Panel
But this isn't just about aesthetics. Each decision opens new possibilities. Leveraging our unique clip-and-click panel, FreeForm lets users vertically adjust or entirely remove your optical disk drive (ODD) and HDD via sliding locks so intuitive you'll play with your configurations just for fun. Well, some people will. Just click-in the cages, and adjust the height to suit your needs. Position them at the top to allow room for up to three extra-long graphics cards, or retain only the bottom positioned cages to add a front-mounted radiator for even more cooling options.

Slip-and-Clip Pockets
The first Cooler Master case to incorporate two easy to install slip-and-clip solid-state drive pockets (2.5) with four easy mounting positions. Showcase them on the partition panel or hide them behind the motherboard tray for a cleaner look.

A. Two behind the motherboard tray
B. Two on top of power supply partition

Accessories
FreeForm extends beyond the case to include all the support you need in terms of selecting and purchasing components through a range of accessories to truly help you Make It Yours.

Model	MC500	MC500P	MC500M	MC500MT	MC600P
Dimensions ? L x W x H	512 x 235 x 548 mm (20.2 x 9.3 x 21.6 in)	512 x 235 x 548 mm (20.2 x 9.3 x 21.6 in)	528.6 x 235 x 548 mm (20.8 x 9.3 x 21.6 in)	544 x 242 x 574 mm (21.4 x 9.5 x 22.6 in)	544 x 235 x 548 mm (21.4 x 9.3 x 21.6 in)
Motherboard Support	E-ATX up to 12 x 10.7, ATX, Micro-ATX, Mini-ITX	E-ATX up to 12 x 10.7, ATX, Micro-ATX, Mini-ITX	E-ATX up to 12 x 10.7, ATX, Micro-ATX, Mini-ITX	E-ATX up to 12 x 10.7, ATX, Micro-ATX, Mini-ITX	E-ATX up to 12 x 10.7, ATX, Micro-ATX, Mini-ITX
Liquid Cooling Support ? Front, Top, Rear	120/140/240/280/360 mm, 120/240 mm, 120/140 mm	120/140/240/280/360 mm, 120/140/240/280 mm, 120/140 mm	120/140/240/280/360 mm, 120/140/240/280 mm, 120/140 mm	120/140/240/280/360 mm, 120/140/240/280 mm, 120/140 mm	120/140/240/280/360 mm, 120/140/240/280 mm, 120/140 mm
Materials	Steel, Plastic, Tempered Glass	Steel, Plastic, Tempered Glass	Steel, Plastic, Tempered Glass	Steel, Plastic, Tempered Glass	Steel, Plastic, Tempered Glass
Fan Support ? Front, Top, Rear	120/140 mm x 3, 120 mm x 2, 120/140 mm x 1	120/140 mm x 3, 120/140 mm x 2, 120/140 mm x 1	120/140 mm x 3, 120/140 mm x 2, 120/140 mm x 1	120/140 mm x 3, 120/140 mm x 2, 120/140 mm x 1	120/140 mm x 3, 120/140 mm x 2, 120/140 mm x 1
Drive Bay Support ? 5.25, 2.5/3.5, 2.5 SSD	2, 8 or 10 w/ODD Bay removed, 4	2, 8 or 10 w/ODD Bay removed, 4	2, 8 or 10 w/ODD Bay removed, 1	2, 8 or 10 w/ODD Bay removed, 1	2, 8 or 10 w/ODD Bay removed, 4
Extra Features	Front/Top/Bottom Dust Filters, 25?35 mm Cable Routing Behind Motherboard Tray	Front/Top/Bottom Dust Filters, 25?35 mm Cable Routing Behind Motherboard Tray, Extra Solid Front Panel	Front/Top/Bottom Dust Filters, 25?35 mm Cable Routing Behind Motherboard Tray, RGB Control Board (Cycle, Static, M/B modes) to Pre-Built LED Partition Plate w/Two Additional Connections Available	MasterCase M-Port VGA Card Holder, Front/Top/Bottom Dust Filters, 25?35 mm Cable Routing Behind Motherboard Tray, RGB Control Board (Cycle, Static, M/B modes) to Pre-Built LED Partition Plate w/Two Additional Connections Available, Magnetic Paneling	Front/Top/Bottom Dust Filters, 25?35 mm Cable Routing Behind Motherboard Tray, Front RGB LED Strip
Power Supply Support	Bottom Mount, ATX	Bottom Mount, ATX	Bottom Mount, ATX	Bottom Mount, ATX	Bottom Mount, ATX
Clearances ? VGA, CPU	412 mm w/o 3.5 HDD cage & 296 mm w/3.5 HDD cage, 190 mm	412 mm w/o 3.5 HDD cage & 296 mm w/3.5 HDD cage, 190 mm	412 mm w/o 3.5 HDD cage & 296 mm w/3.5 HDD cage, 190 mm	412 mm w/o 3.5 HDD cage & 296 mm w/3.5 HDD cage, 190 mm	412 mm w/o 3.5 HDD cage & 296 mm w/3.5 HDD cage, 190 mm
I/O	USB 3.0 x 2, USB 2.0 x 2, Audio I/O w/support for HD Audio	USB 3.0 x 2, USB 2.0 x 2, Audio I/O w/support for HD Audio	USB 3.1 (Type-C) x 1, USB 3.0 (Type-A) x 3, Audio I/O w/support for HD Audio	USB 3.1 (Type-C) x 1, USB 3.0 (Type-A) x 3, Audio I/O w/support for HD Audio	USB 3.0 x 2, USB 2.0 x 2, Audio I/O w/support for HD Audio
