Bitspower Mono Block for ROG Maximus XII Hero (Wi-Fi)

Bitspower Mono Block for ROG Maximus XII Hero (Wi-Fi)

The most important components of your motherboards deserve to receive the best heat management possible, which is why Bitspower expertly designed the Intel Z490 series mono block to simultaneously cool the CPU and VRMs. Featuring a direct water injection design, the CPU is firstly chilled with the coldest water, then the liquid is redirected over the VRMs, keeping everything at a low temperature for maximum performance.

Made of clear acrylic, the top layer of the mono block offers not only an efficient water channel design, but also a unique look to complement your PC style, while the base layer is made of high quality copper and molded to tightly fit over the CPU and VRMs, offering the best heat transfer possible. Additionally, the Bitspower Intel Z490 series mono block is equipped with Bitspower Digital RGB LEDs, the Z490 series mono block is sure to become the center piece of your rig with its easy to control light effects.

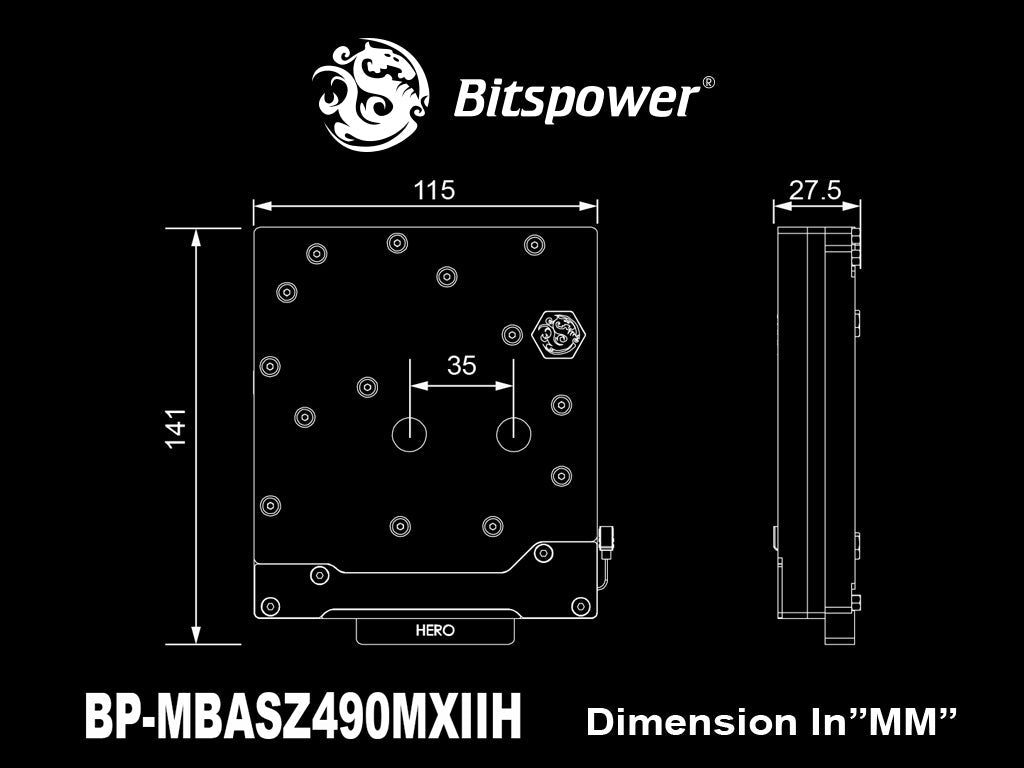

Dimension(LxWxH) : 141x115x27.5 MM
Thread : G1/4 x 2

Included :
1set of BP-MBASZ490MXIIH
1set of Thermal PAD
1set of Mounting Screws/Accessories



Compatibility :
ASUS Z490 ROG MAXIMUS XII HERO



â??DRGB

The end of power supply is 3PIN. The sequence is +/D/â?? (some motherboards are shown +5V/D/â??, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
