Akasa Maxwell Pro - Premium Aluminum Mini-ITX Case

Blending advanced passive cooling engineering and modern design to create a premium, silent and compact case for Mini-ITX boards. Supports Intel ® and AMD boards with common desktop processors up to 65W TDP. The perfect choice for gaming, HTPCs & audiophile environments. Ready for the new Intel ® LGA1700.

Do you recommend to use the included Thermal Paste or utilise a better thermal paste?

The included AK-TC5026 thermal paste was a specifically chosen for its formula to be used within Akasa fanless cases. Consideration for high thermal conductivity is not the only property when considering the best thermal compound for Akasa fanless cases. The AK-TC5026 properties of ultra-thin bond lines, low-thermal resistance for superior thermal performance, and non-pressure dependency makes the AK-TC5026 the qualified TIM for use with Akasa fanless cases.

Material	Aluminium Body & thermal modules Copper heatpipes
Motherboard & CPU Support	Mini-ITX motherboards Intel® 1151/1200/1700 with Graphics Technology AMD AM4 APUs Maximum of 65W TDP *Check compatibility list under Support Tab.
Dimensions	280 x 209 x 110 mm (W x L x H)
Net Weight (kg)	3.03
Internal Drive Bays	Two for 2.5� SSD/ HDD
Cooling	Copper heatpipes x 4 Aluminium thermal module x 5

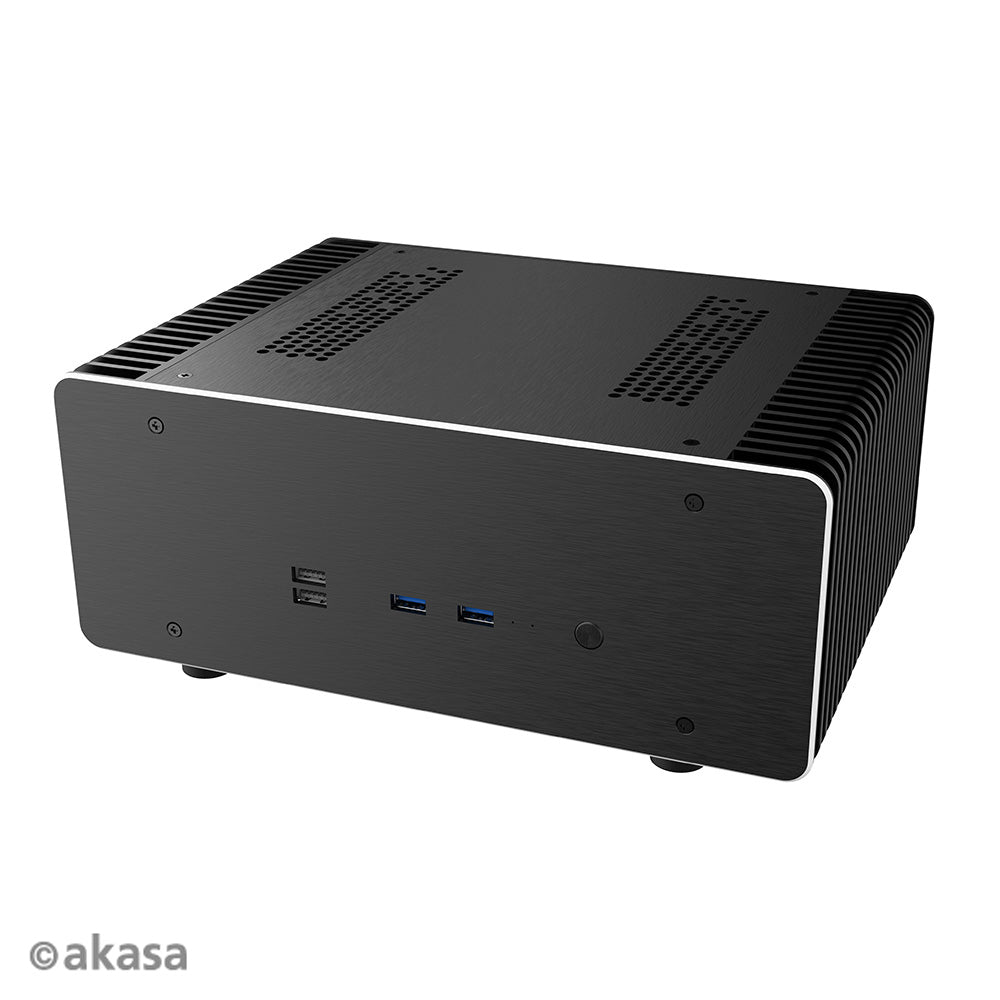

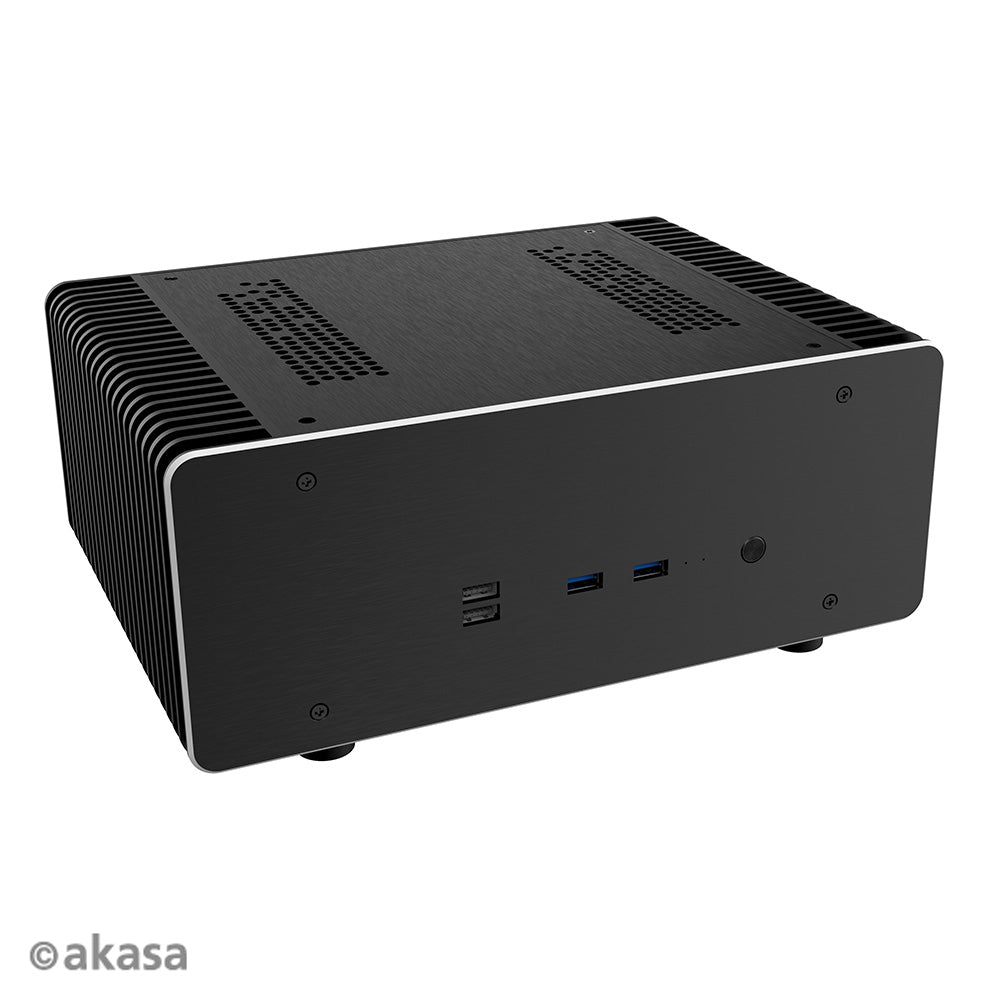

Front I/O	USB 3.2 Gen 1 Type-A x 2 USB 2.0 Type-A x 2 Power LED x 1 HDD LED x 1 Power button x 1

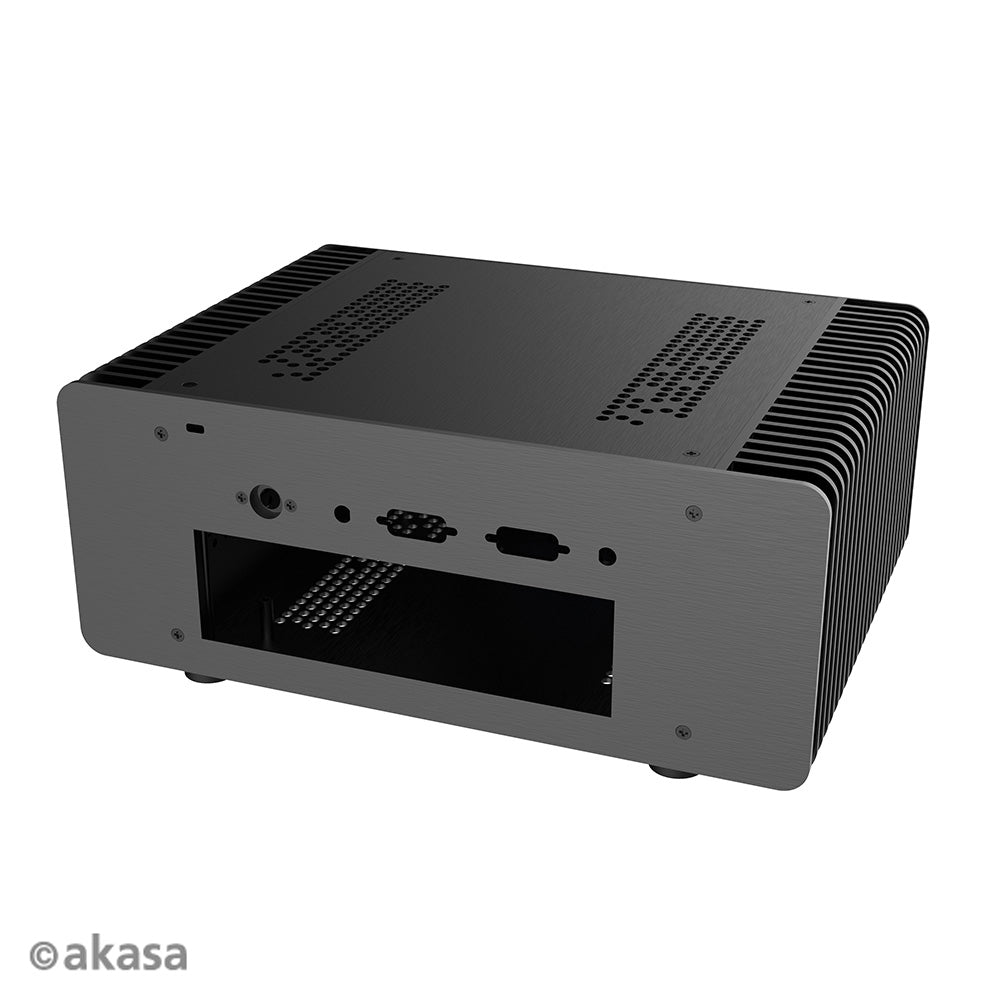

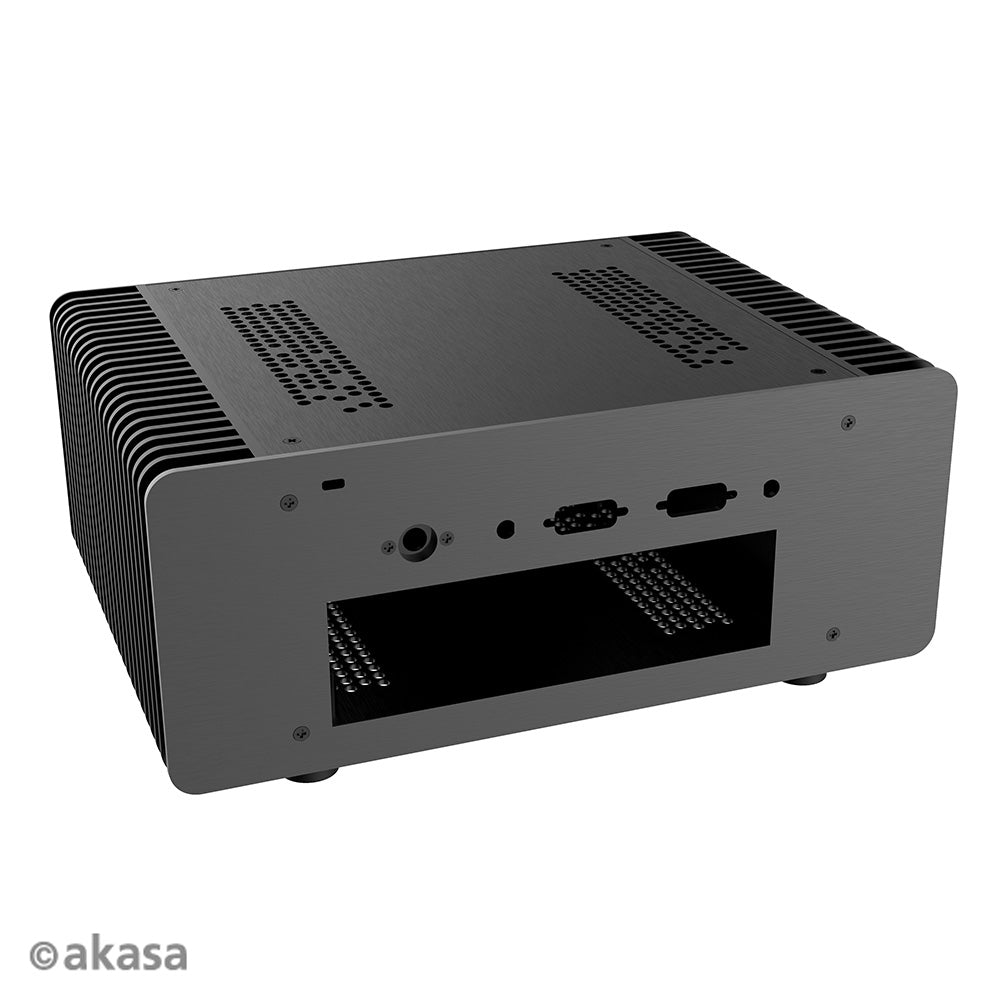

Rear I/O	Antenna fitting holes x 2 Kensington lock x 1 Serial ports x 2 Power connector x 1
Optional Internal Power	150W/12V, 4-pin DIN Jack Compact Power (150W DC to DC ATX power supply) Product Code: AK-PE150-05*
Optional External Power Brick	150W/12V, 4-pin DIN Power Adapter Product Code: AK-PD150-02K*
Product Code	A-ITX48-M2B

Â

* Recommended for Intel® CoreTMï ̧ i7 & Ryzen 5 at 65W TDP as 4-pin DIN adapters are more suitable for high current output applications
