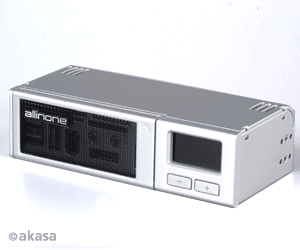

Akasa All In One 2 Multipurpose Control Panel - Silver

The All In One 2 is a development of the popular akasa control panel. The multi functional panel sits in a 5.25? PC bay and offers three major function types including:

? Five slot internal memory card reader Conveniently positioned at the front of your PC makes using flash cards easy. Compatible with all popular memory cards, accepts high capacity cards and absolutely no card adapters are required.
? Easy access multi connections Featuring eSATA, IEEE1394, HD Audio and 3x USB2.0 ports neatly covered behind a push open mesh cover ready to use when needed.
? Smart fan and temperature control Constantly monitors temperature in three system zones and enables automatic (temperature driven) or manual control of three fans. The colour LCD screen displays selected fan speed and thermal probe temperature.

The built in adjustable alarm function warns you if any components exceed pre-set temperatures or if a fan is faulty. The multi featured AllInOne2 panel makes the perfect solution for taking control of your PC system and expanding its multimedia functions. It is easy to use and adds class to any system case. The AllInOne2 is available in silver or black.

Application	Multi function panel for 5.25? PC bay
Number of channels	3 fans 3 temperatures
Fan voltage control	6V - 12V (manual) 7V - 12V (automatic)
Max load	0.5A (per channel)
Screen size	31 x 17mm
Fan speed display	0-9990 RPM
Temperature display	0-90.0°C
I/O ports	7
USB ports	3
IEEE1394 port	1
eSATA ports	1
HD Audio	1x in/out (AC?97 compatible)
Memory card slots	5
Supported memory cards	(CF) Compact Flash and (MD) Micro Drive (MS) Memory Stick / Pro / Duo (SD) Secure Digital / SDHC / SDXC and MMC (eX) Extreme Digital (microSD) microSDHC, micro SDXC
Card reader interface	USB 2.0
Supported OS	Windows 2000 / XP / Vista / 7 / 8 / 8.1
Input power	5V / 12V DC
Product code	AK-ALL02-BK (black) AK-ALL02-SL (silver)
