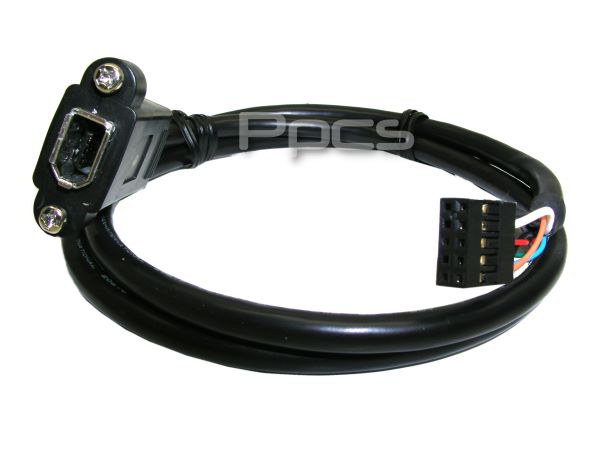

1394 Firewire Internal 10-Pin Female to External 6-Pin Female Port

Product Details:

A Performance PC's custom made Firewire cable/adapter that features a 10-pin internal female firewire adapter to a female external Firewire port.

Please consult your motherboard manual to check for pin outs of your 1394 headers.

Standard Wire Assignments

Blue: TPA +
Orange: TPA -
Green: TPB +
Red: TPB -
White: VP / Voltage + / VCC
Black: GND / Voltage -
Black: S-GND / Over Current / Shielding

The S-GND wire is fatter and can be easily recognized

Specifications:

• This cable can plug into an internal port on a PCI Firewire card or motherboard and pass that connection through the system case to a mountable external Female 6-pin Firewire port.


• You can also connect this cable to the internal port (firewire 10 pin female) found on some mainboards.


• Cable is 30 long.
