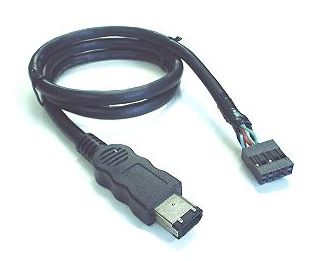

1394 Firewire Internal 10-Pin Female Header to 6-Pin Male Cable

Product Details:

A Performance PC's custom made firewire cable/adapter that goes from a firewire 10-pin female header and converts to a male 6-pin external connector.

Please consult your motherboard manual to check for pin outs of your 1394 headers.

Standard Wire Assignments

Blue: TPA +
Orange: TPA -
Green: TPB +
Red: TPB -
White: VP / Voltage + / VCC
Black: GND / Voltage -
Black: S-GND / Over Current / Shielding

The S-GND wire is fatter and can be easily recognized

Specifications:

• The cable can exit through the PCI opening and plugged into one of the 1394 ports located at the back of the PC with the header connecting to the device itself.


• You can also connect this cable to the internal port (firewire 6 pin male) of PCI firewire card, or USB firewire combo card and then to a device that has a header connection.


• Cable is 30 long.
