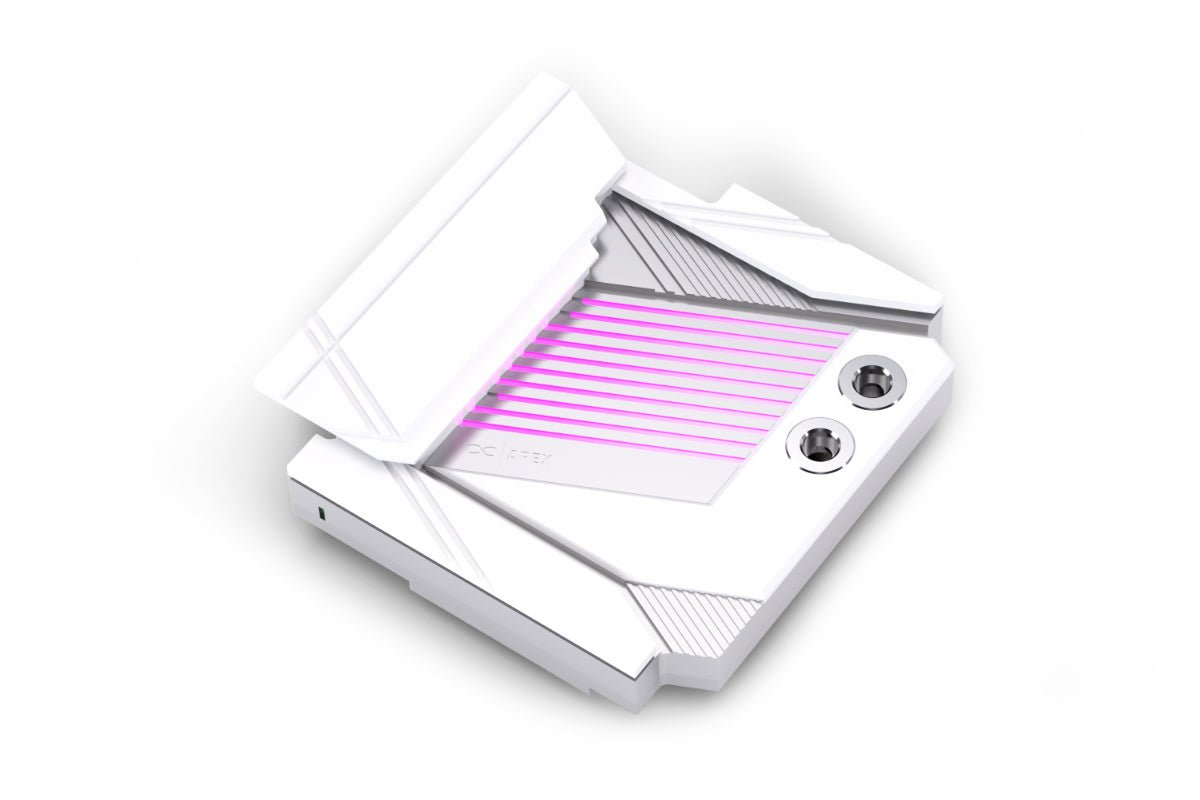

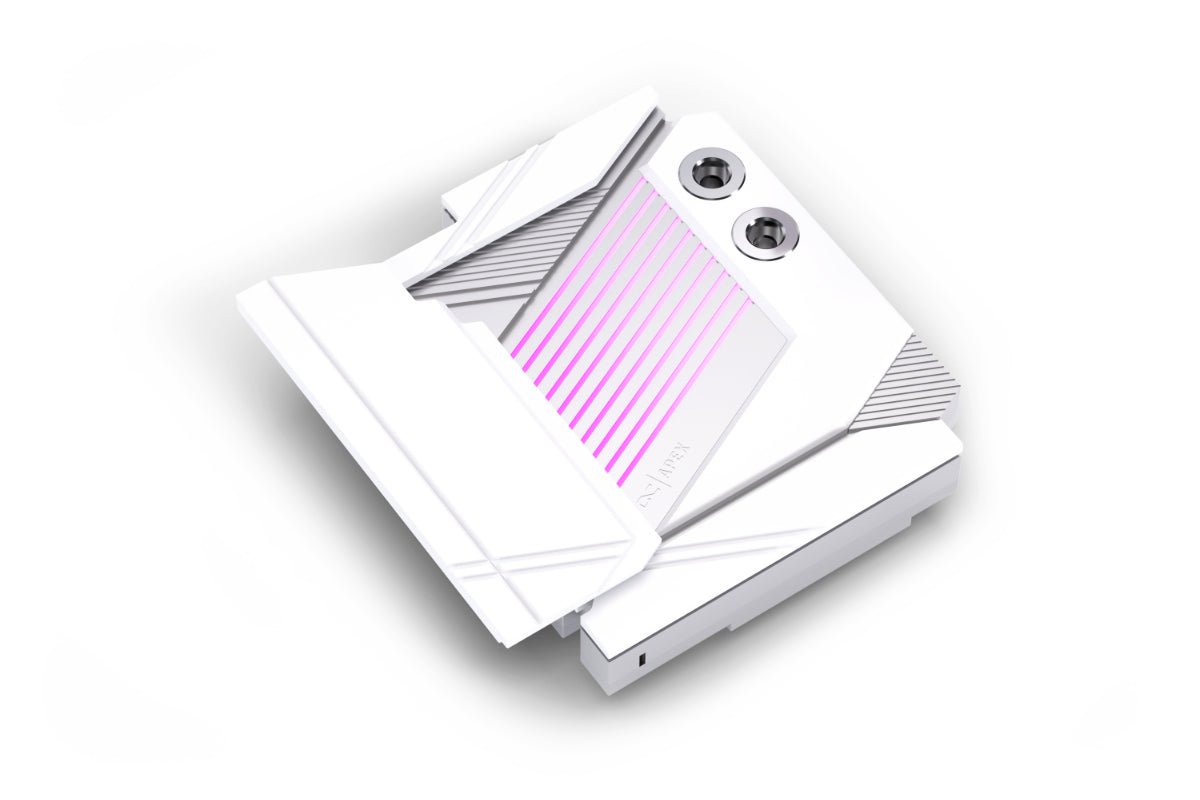

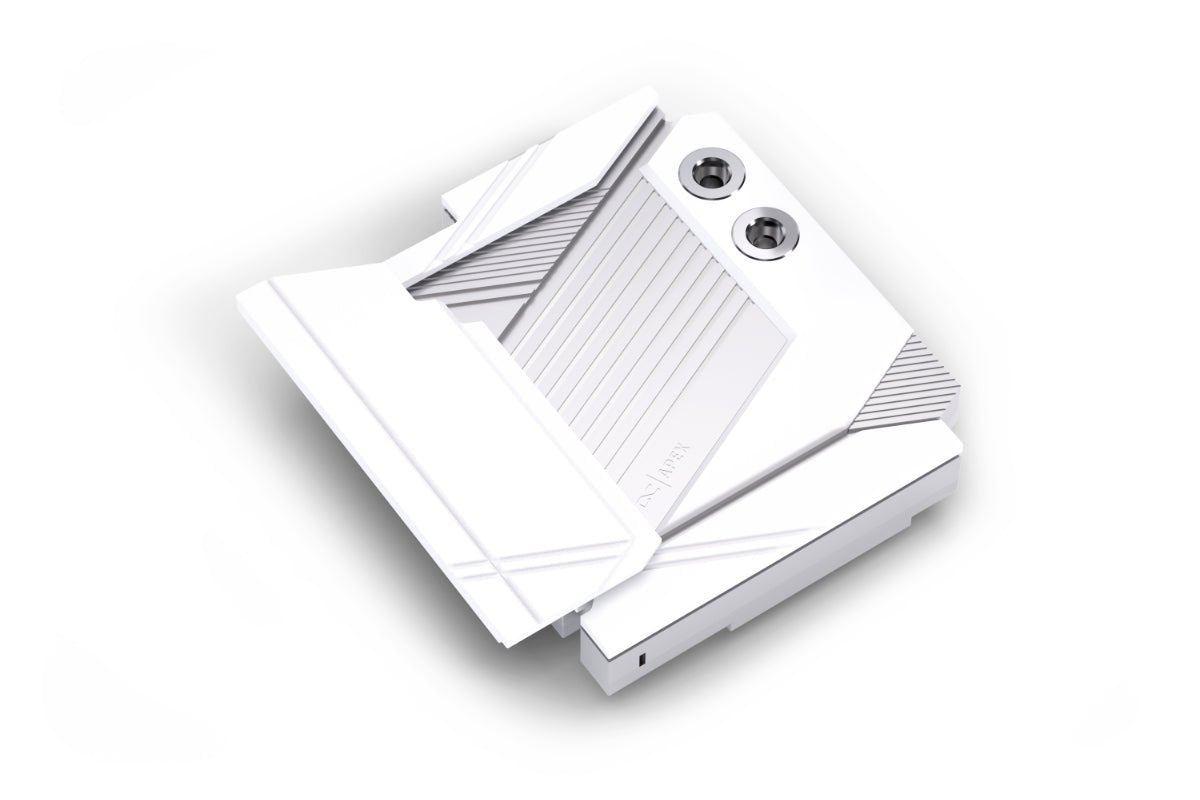

Alphacool Apex Monoblock X870 AORUS ELITE WIFI7 ICE

The Apex Monoblock is the ideal cooling solution for maximum performance, combined with an elegant design that is perfectly matched to the

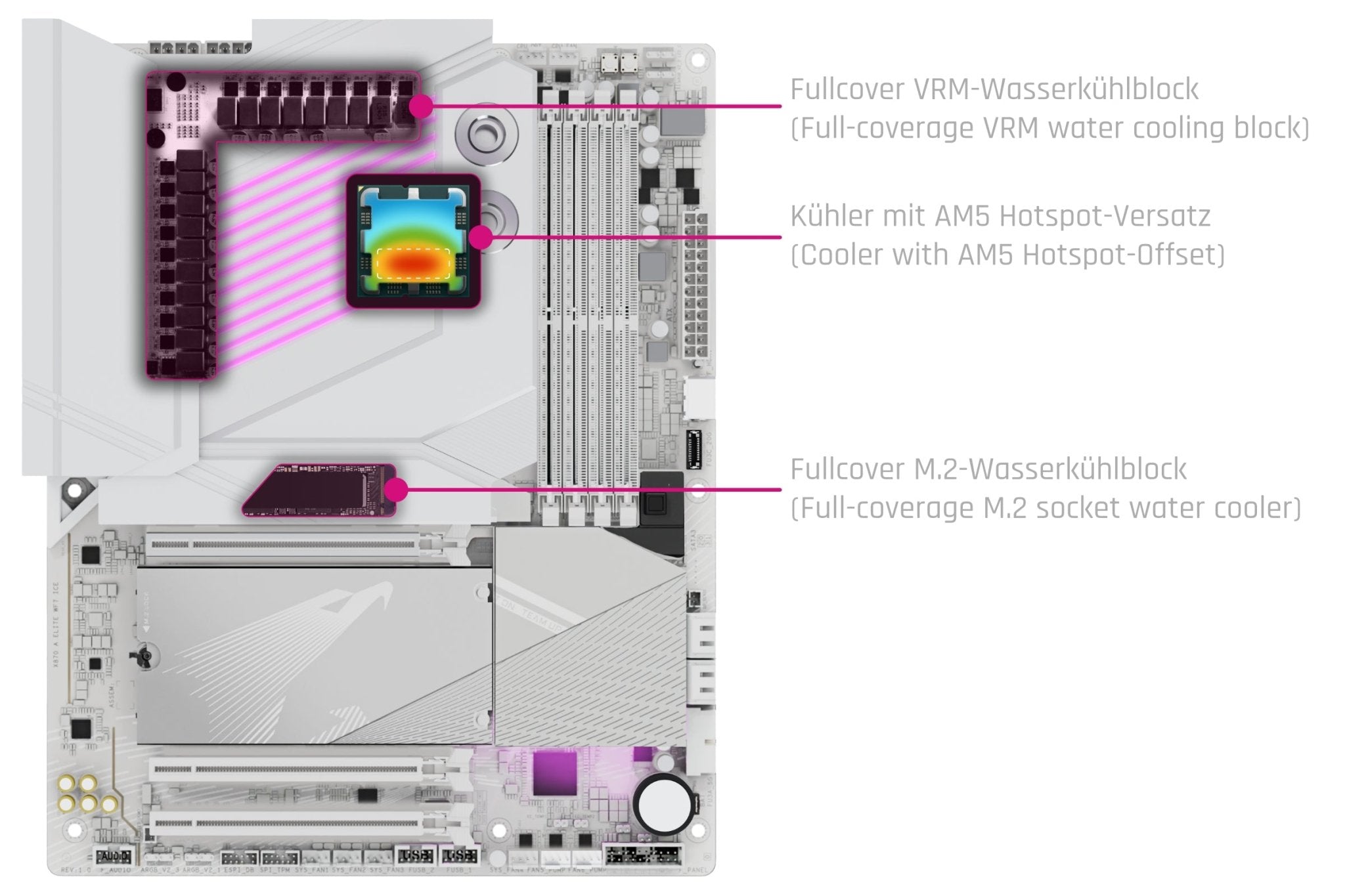

motherboard. Developed specifically for the motherboard, the monoblock cools the CPU, the voltage regulators (VRMs), as well as the M.2 NVMe SSD
located below the CPU socket. All key motherboard components are actively cooled through the monoblock’s water block.

Like the Apex 1 CPU cooler, the Apex Monoblock uses an offset cold plate. This allows the coolant flow to hit the thermal hotspot of the AM5 CPU
directly. In combination with the proven cross-slot structure and the 3D Jetplate 2.0, this design generates high water pressure, enabling particularly
efficient heat dissipation. Ideal for overclocking or continuous operation.

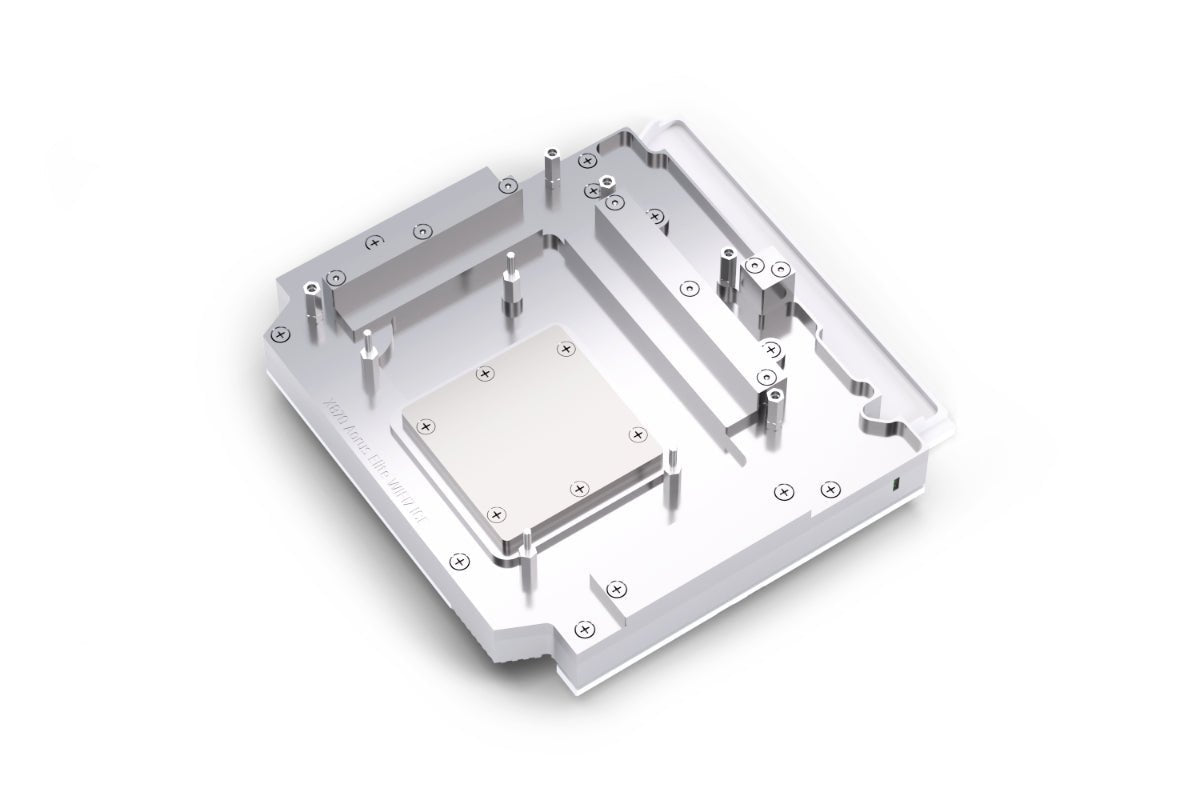

The cooler is milled from a solid block of copper. The G1/4" connection terminal is made of brass and, together with the copper base, ensures long
durability as well as excellent thermal conductivity.

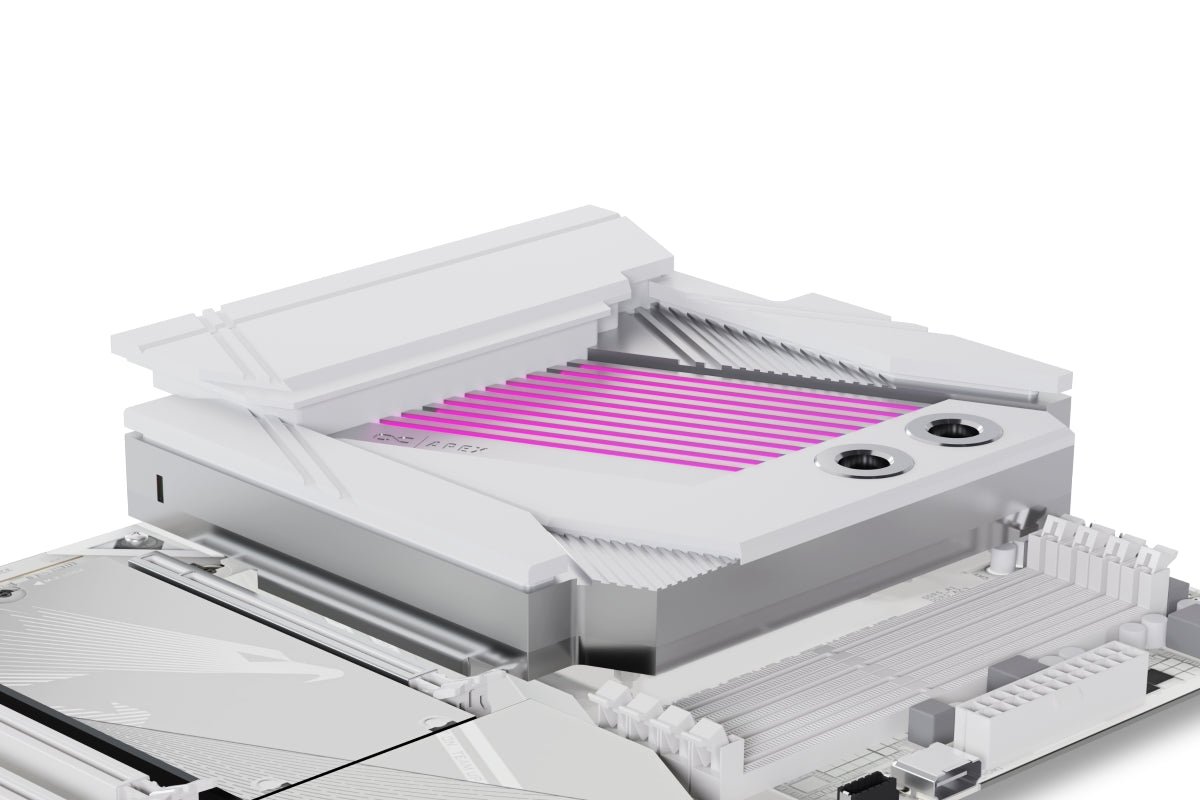

The Apex Monoblock design, tailored to the respective motherboard, not only delivers optimal cooling performance but also integrates seamlessly into
the motherboard’s appearance.

It features an integrated I/O cover, creating a clean and cohesive look that blends perfectly with the motherboard’s design.

The monoblock combines performance, design, and functionality, making it a highlight of any custom water-cooling setup.

 • Processors hotspot optimized

 • Fullcover M.2, VRM and CPU Cooler

 • Stunning aRGB illumination

Scope of delivery

 1x Apex Monoblock 1x 15x15x2mm Pad 2x 73x8x2mm Pad 1x 91x15x2mm Pad 1x 91x8x2mm Pad 1x 70x22x2mm Pad 1x Thermal Grease 1x Putty tool 4x AM5 Mounting Nut 5x Washer 5x M3x8mm Screw 1x ARGB Adapter



Technical data Dimensions

 (L x W x H) (in mm) 175,50 x 54,30 x 46,90 Material cooler Chome-plated copper (Cu-HCP) Material cover Aluminium (AlMg0,7Si) Material cooler top Plexi (LXN865) Material terminal Brass (CuZn39Pb3) Threads 2x G 1/4 Material connection thread Brass (CuZn39Pb3) Maximum torque G1/4 thread (in Nm) 1,00 Maximum torque M3 thread (in Nm) 0,48 Maximum torque M4 thread (in Nm) 1,12 Maximum operating temperature (in °C) 60 Recommended working temperature (in °C) 20 Minimum operating temperature (in °C) -20 Maximum tested pressure (in bar) 2,00 Maximum tested pressure (in bar) 0,00 - 1,00 Thickness of cooling fins (in mm) 0,40 Distance between cooling fins (in mm) 0,40 LED quanitity (in pcs,) 9,00 LED lenght (in mm) 149,40 LED Voltage (in V DC) 5,00 LED Ampere (in A) 0,06 LED Power (in W) 2,70 Cooling technology Jet engine



Technical data thermalpads
Thermal conductivity of thermal pads (in W/mK) 7
Thermal pads Hardness ASTM 2240 35 Shore 00



Technical data thermalpaste
Evaporation rate Less than 0,5
Density (g/cm3) 3,2 (Test method ASTM D2196)
Viscosity 150~200*10³ (Test method ASTM D2196)
Operating temperature (°C) -40°C to 120°C
Breakdown voltage (V/mil) 250 (Test method ASTM D149)
Thermal impedance (°C in 2/W) 0.1 +/- 0.01 (Test method ASTM D5470)
Maximum operating pressure (psi) 40
Quantity (in gramm) 1g
Color Grey
